NUX Tutti Polyphonic Octave

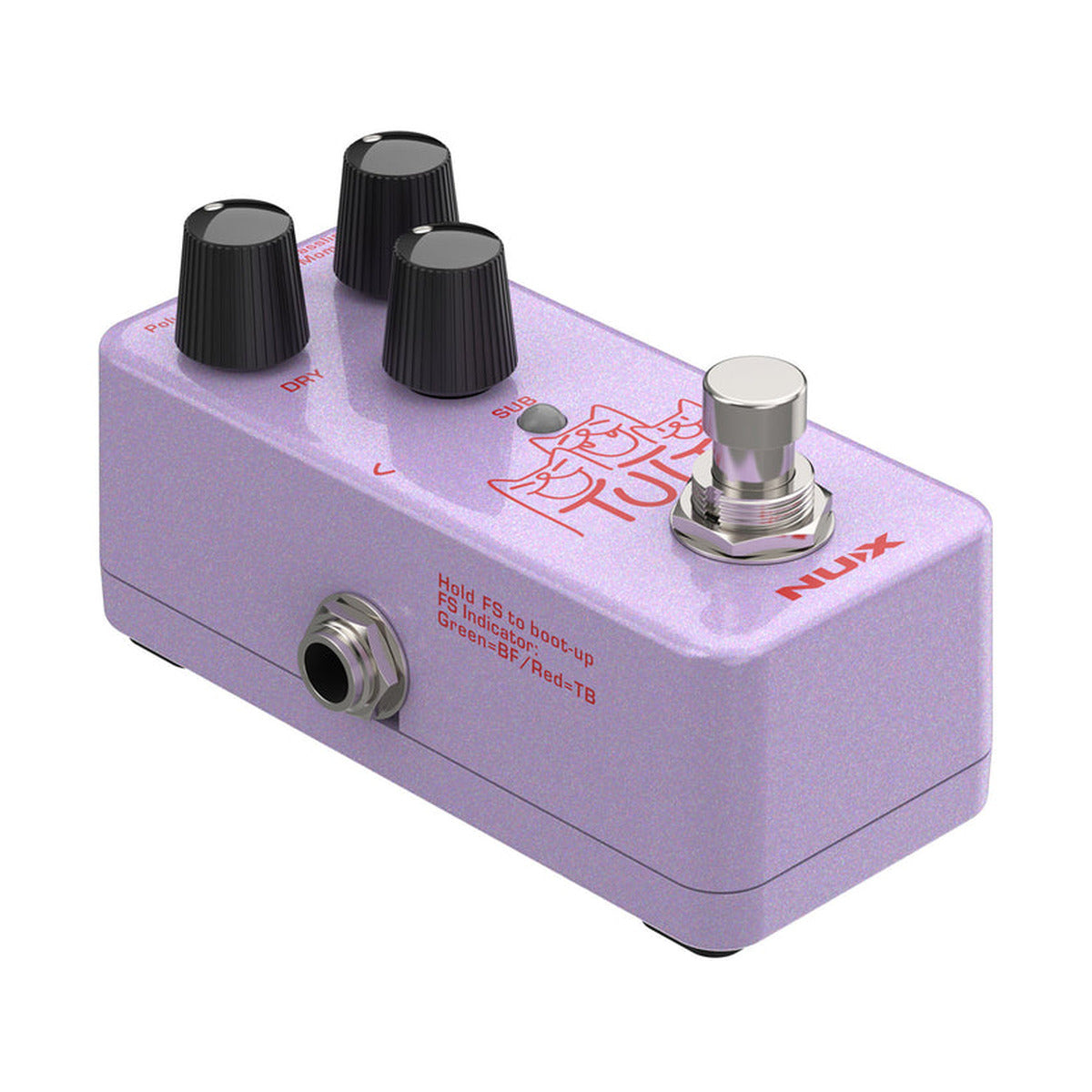

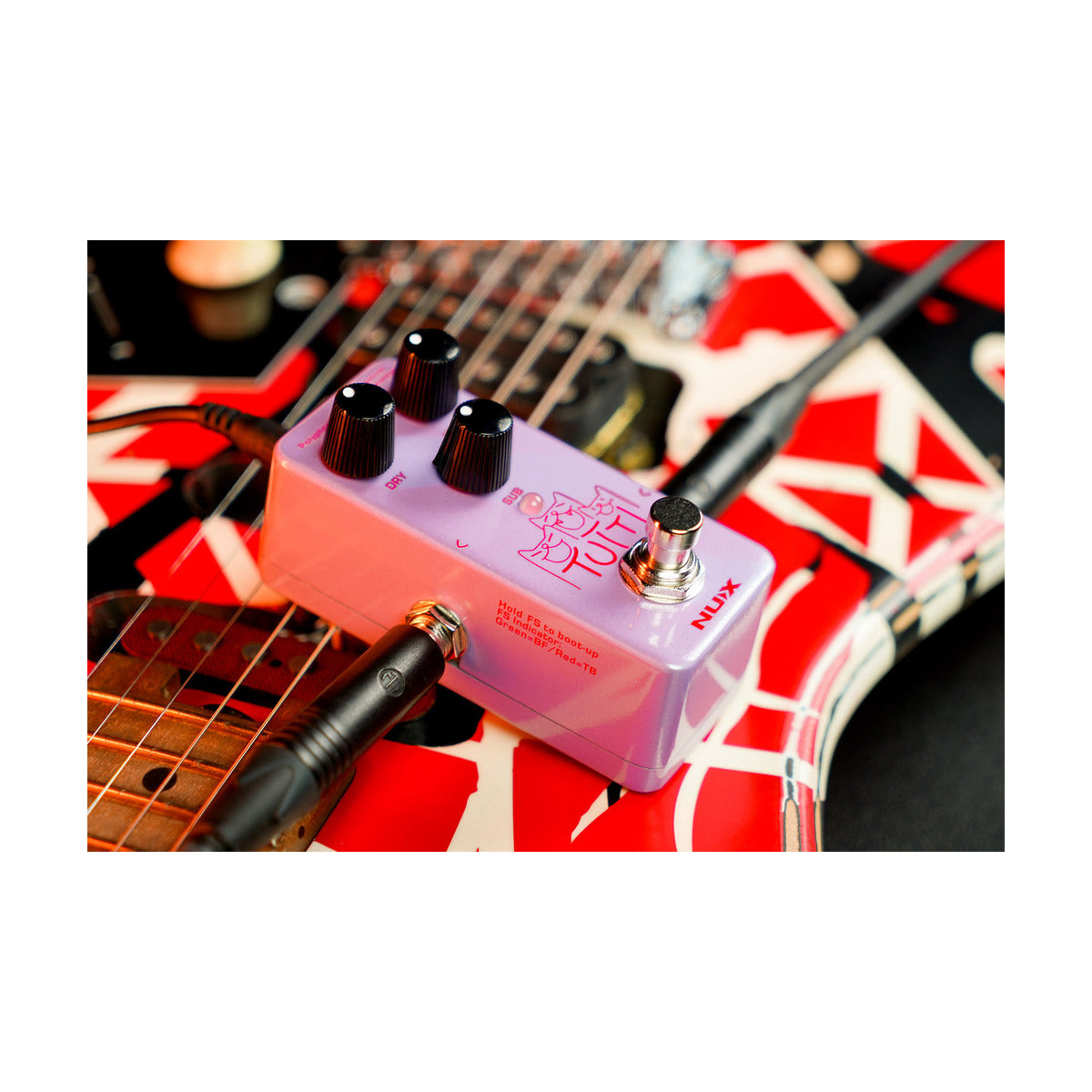

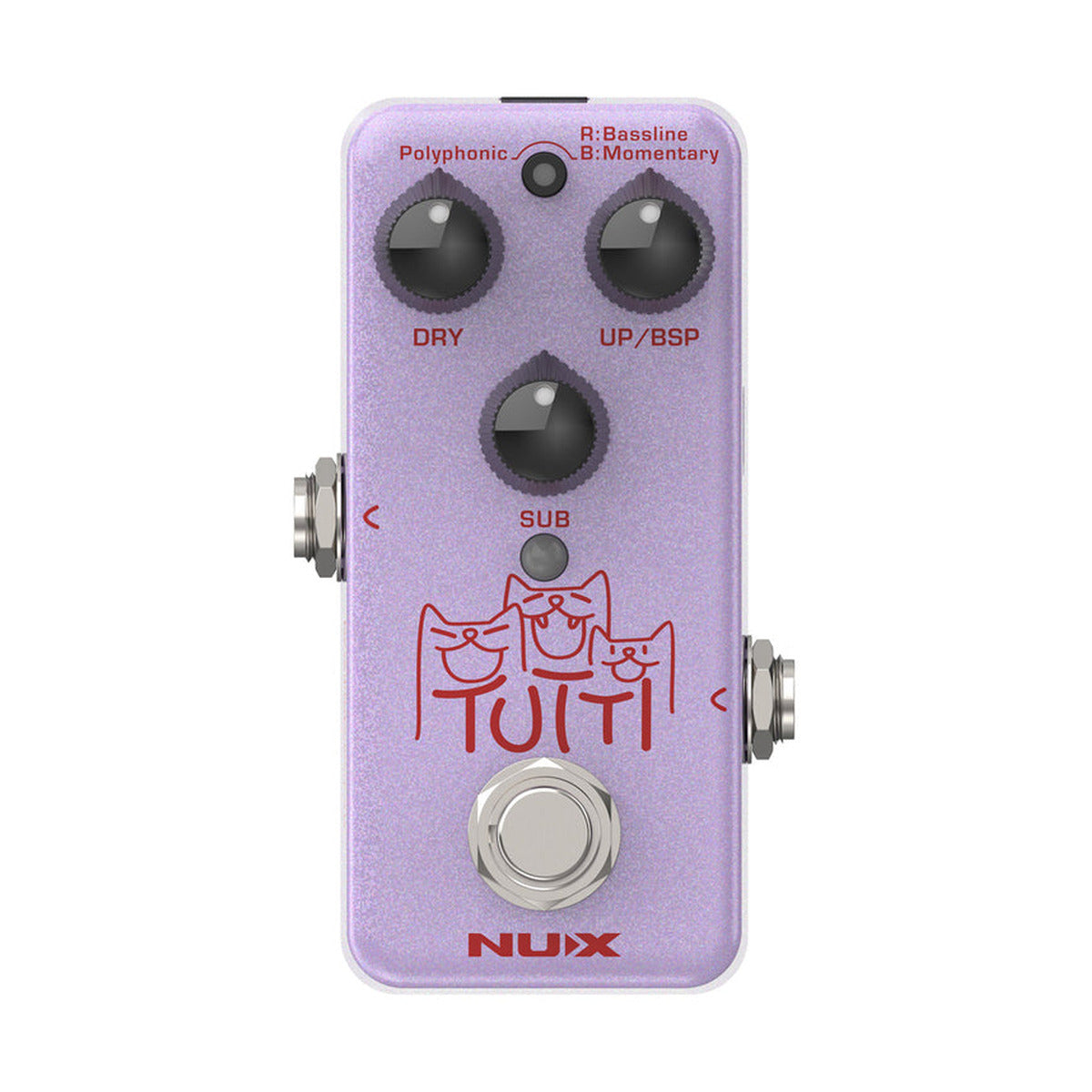

The NUX TUTTI — Polyphonic Octave Pedal.

Features

• TUTTI means “full ensemble” — TUTTI allows you to generate multiple octave effects from your input signal. Thanks to NUX’s excellent polyphonic octave algorithm, TUTTI’s octave effects are highly musical and feature extremely low latency.
• Three Modes, Three Ways to Play — The NUX TUTTI features three unique octave modes: Polyphonic, Bassline, and Momentary. You can quickly switch between them using the top-mounted toggle switch.
• POLYPHONIC — Default mode, with both high and sub octave added on the original note.
• BASSLINE — Adds octave only on notes below the split-point, the notes above the split-point remains the same.
• MOMENTARY — PRESS the Footswitch to engage the octave effect. RELEASE to bypass the effect (returns to dry signal).
• Easy Integration Into Your Pedalboard — Beyond its compact size for easy placement, TUTTI also includes hook & loop tape (Velcro) and rubber feet, allowing you to securely mount it onto your pedalboard.

Specifications

• Big and versatile octave sounds in a cute mini enclosure.
• 3 specialized modes give you unlimited creative possibilities.

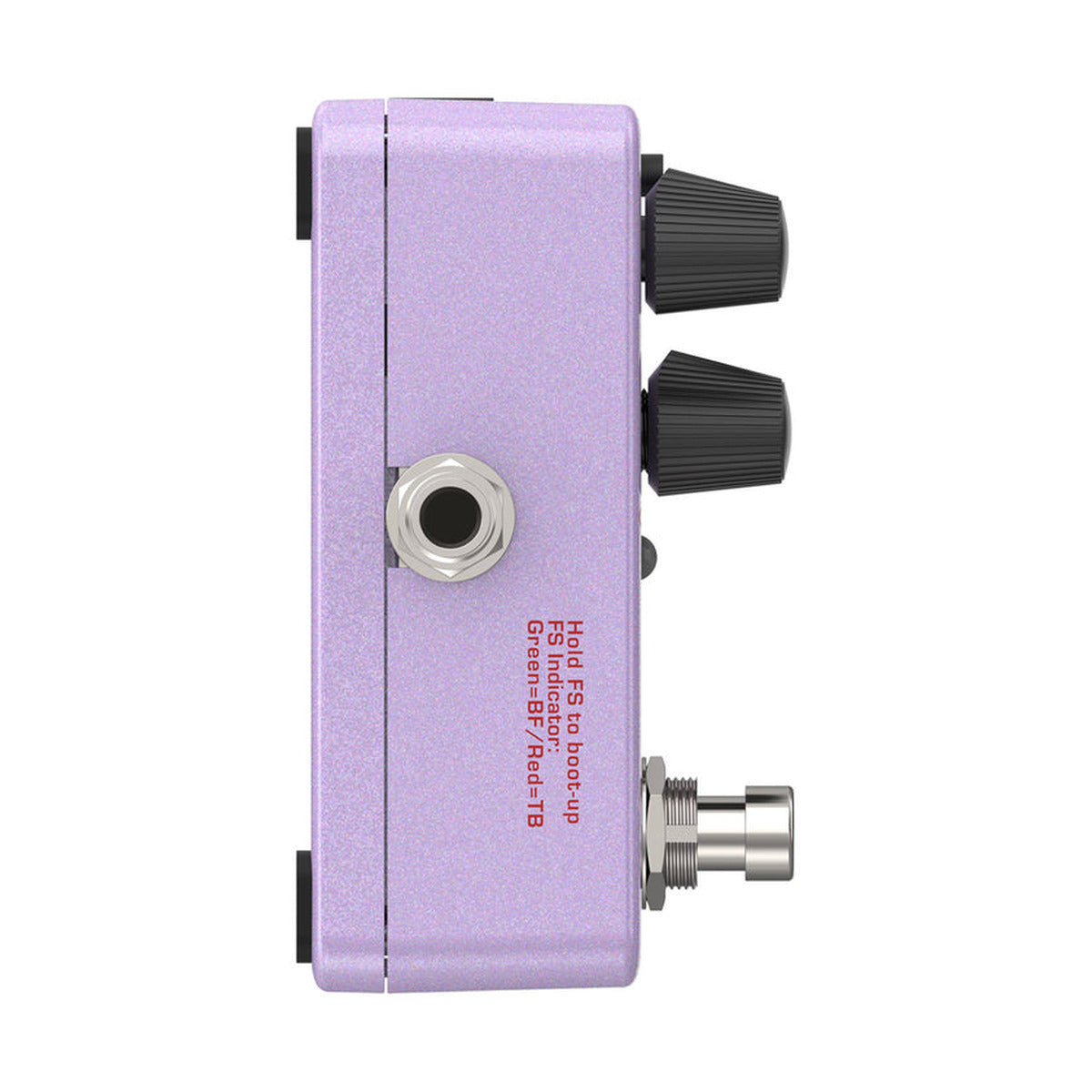

• True bypass or Buffered bypass.
• Low power consumption (less than 150 mA).

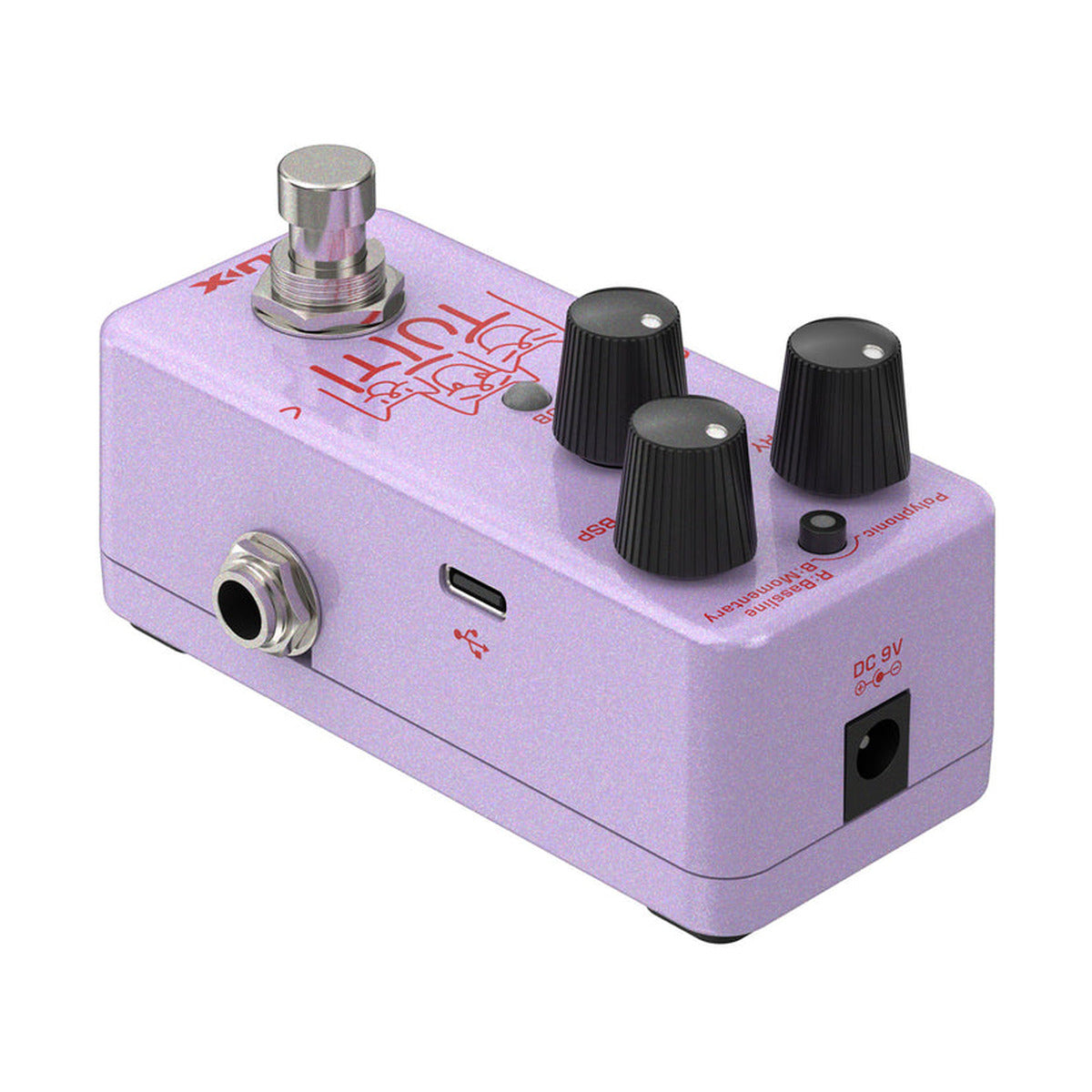

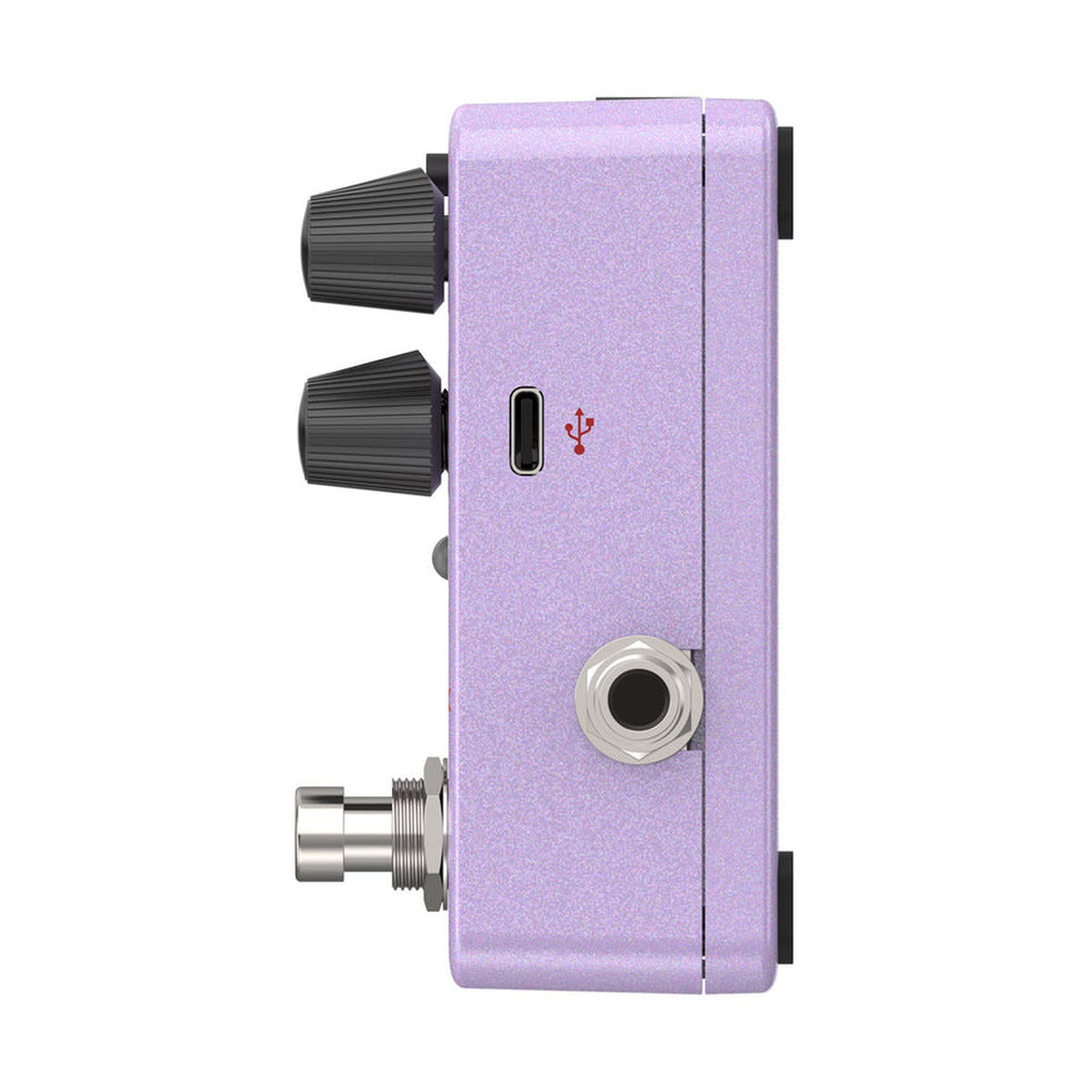

• USB port for firmware update.
• Input Impedance: 1 MΩ
• Output Impedance: 10 kΩ
• Dynamic Range: 103 dB
• DSP Processing: 48 kHz / 32-bit
• A/D & D/A Sampling Rate: 48 kHz / 24-bit

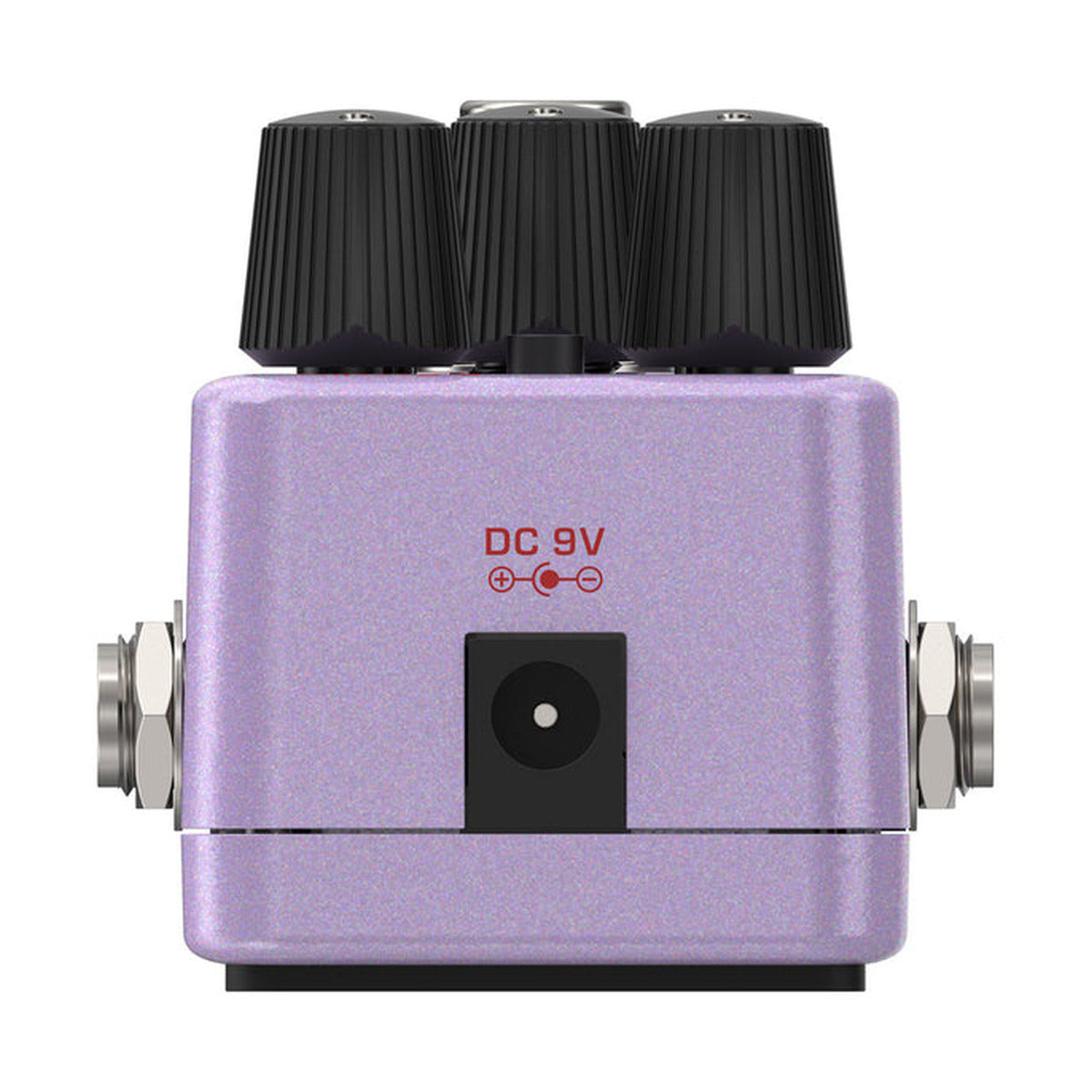

• Power: 9 V DC (Negative tip, Optional ACD-006A adapter)
• Current Draw: Less than 150 mA
