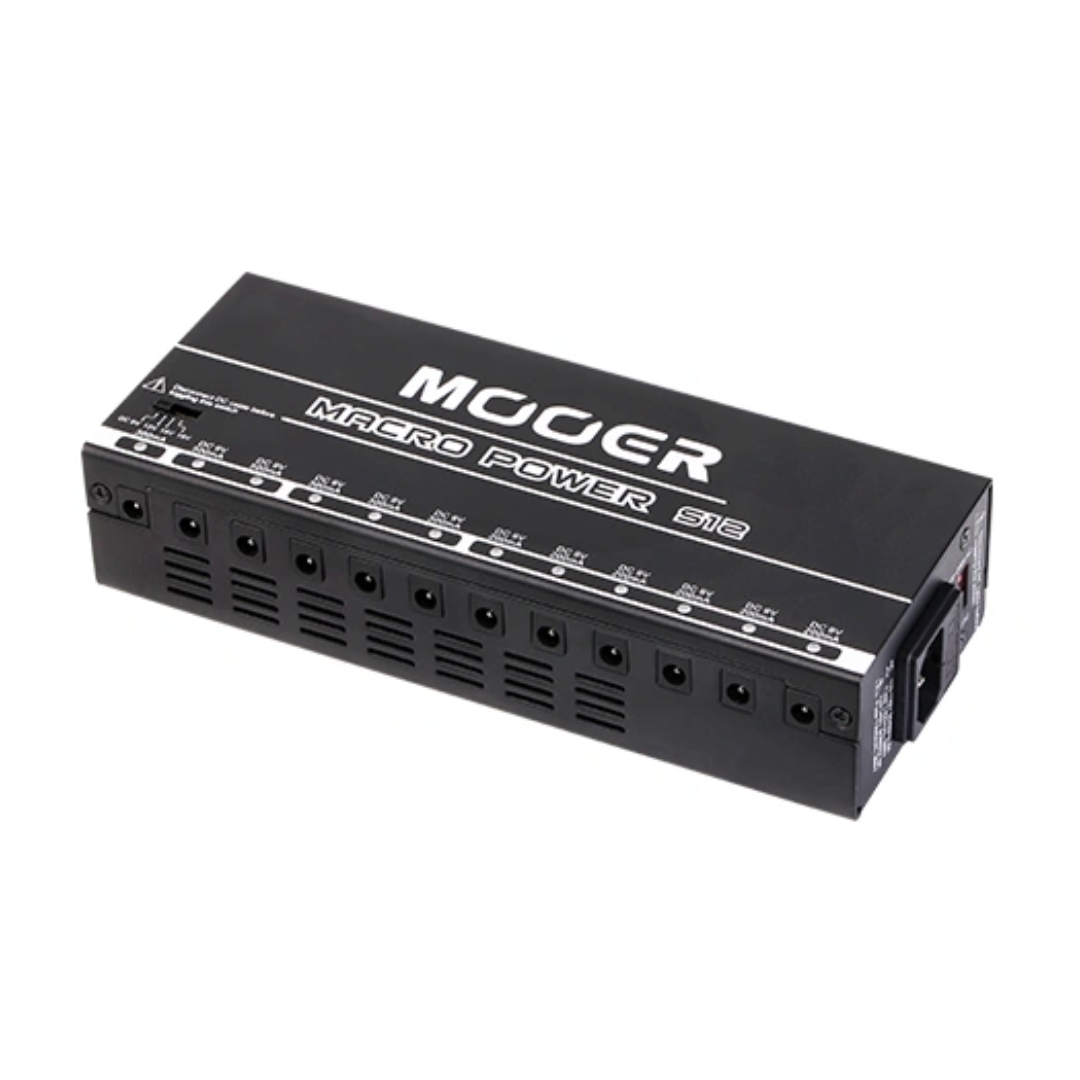

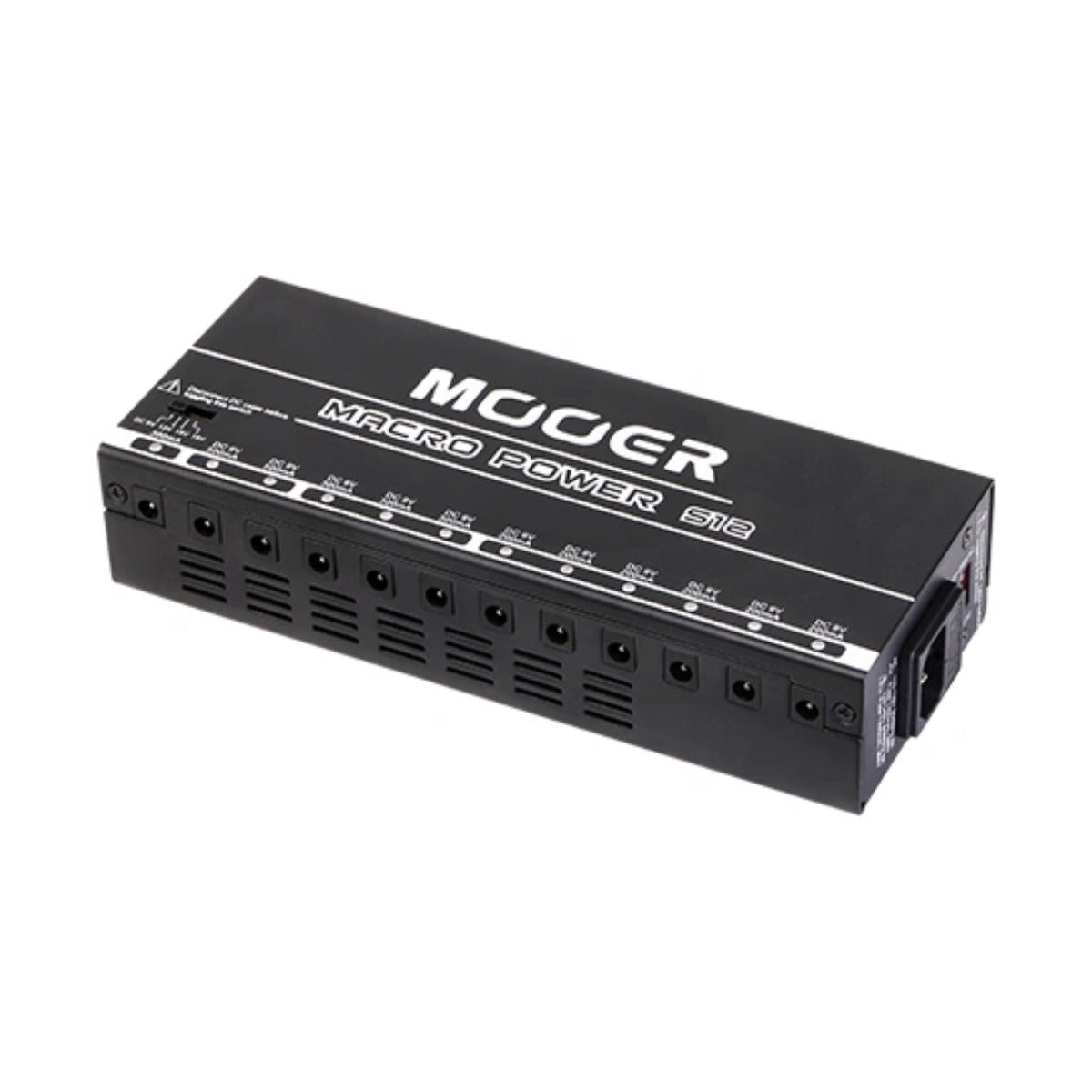

MOOER MACRO POWER S12 Professional Pedalboard Power Supply

The MOOER MACRO POWER S12 is a professional pedalboard power supply featuring 12 completely isolated outputs and a total output capacity of up to 3400mA. With two toroidal transformers and multiple high-current outputs, it provides clean and consistent DC power for a wide range of analogue, digital and high-current effects pedals.

Key Features

• 12 completely independent, isolated DC outputs
• Up to 3400mA total output capacity
• 6 × 9V outputs rated at 200mA
• 3 × 9V outputs rated at 300mA
• 1 × selectable-voltage output: 9V, 12V, 15V or 18V
• Selectable-voltage output rated at 300mA
• 2 × 9V outputs rated at 500mA for high-current pedals
• Dual toroidal transformer design
• Switchable input voltage for use in different regions
• Metal housing designed for pedalboard and touring use
• Includes the required connection cables

Product Description

The MOOER MACRO POWER S12 is a high-output professional power supply designed to provide reliable, isolated power for pedalboards with multiple effects pedals.

It features 12 completely independent outputs, allowing different pedals to be powered separately while helping to minimise unwanted noise and interference.

The output configuration provides flexibility for a wide variety of effects. Six 9V outputs deliver up to 200mA each for conventional analogue pedals, while three additional 9V outputs provide up to 300mA each for digital pedals and preamp-style effects.

For higher-current devices, two dedicated 9V outputs provide up to 500mA each. A further 300mA output offers selectable 9V, 12V, 15V or 18V operation for pedals that require alternative voltage settings.

Two toroidal transformers provide the power supply architecture, while the switchable input voltage makes the MACRO POWER S12 suitable for use in different regions.

The unit is housed in a durable metal enclosure and is supplied with the cables required to connect your pedals.

Specifications

• Brand: MOOER
• Model: MACRO POWER S12
• Type: Pedalboard Power Supply
• Number of Outputs: 12
• Total Output Capacity: Up to 3400mA
• 200mA Outputs: 6 × 9V DC
• 300mA Outputs: 3 × 9V DC
• Selectable Output: 1 × 9V / 12V / 15V / 18V DC, 300mA
• 500mA Outputs: 2 × 9V DC
• Transformer: 2 × toroidal transformers
• Output Configuration: Independent / isolated outputs
• Input Voltage: Switchable for different regions
• Housing: Metal
• Intended Use: Guitar and bass pedalboards
