ART MX225 Rack Mount Distribution Mixer

The ART MX225 is a stereo dual-source, five-zone distribution mixer. It lets you control the volume of several amplifiers or powered speakers in a distributed audio system from one central spot. It suits clubs, restaurants, offices, places of worship and other venues that need balanced sound across a large area or several rooms.

• Two stereo source inputs (Source 1 and Source 2), each accepting stereo or mono signals
• Both sources are routed to all five zone outputs

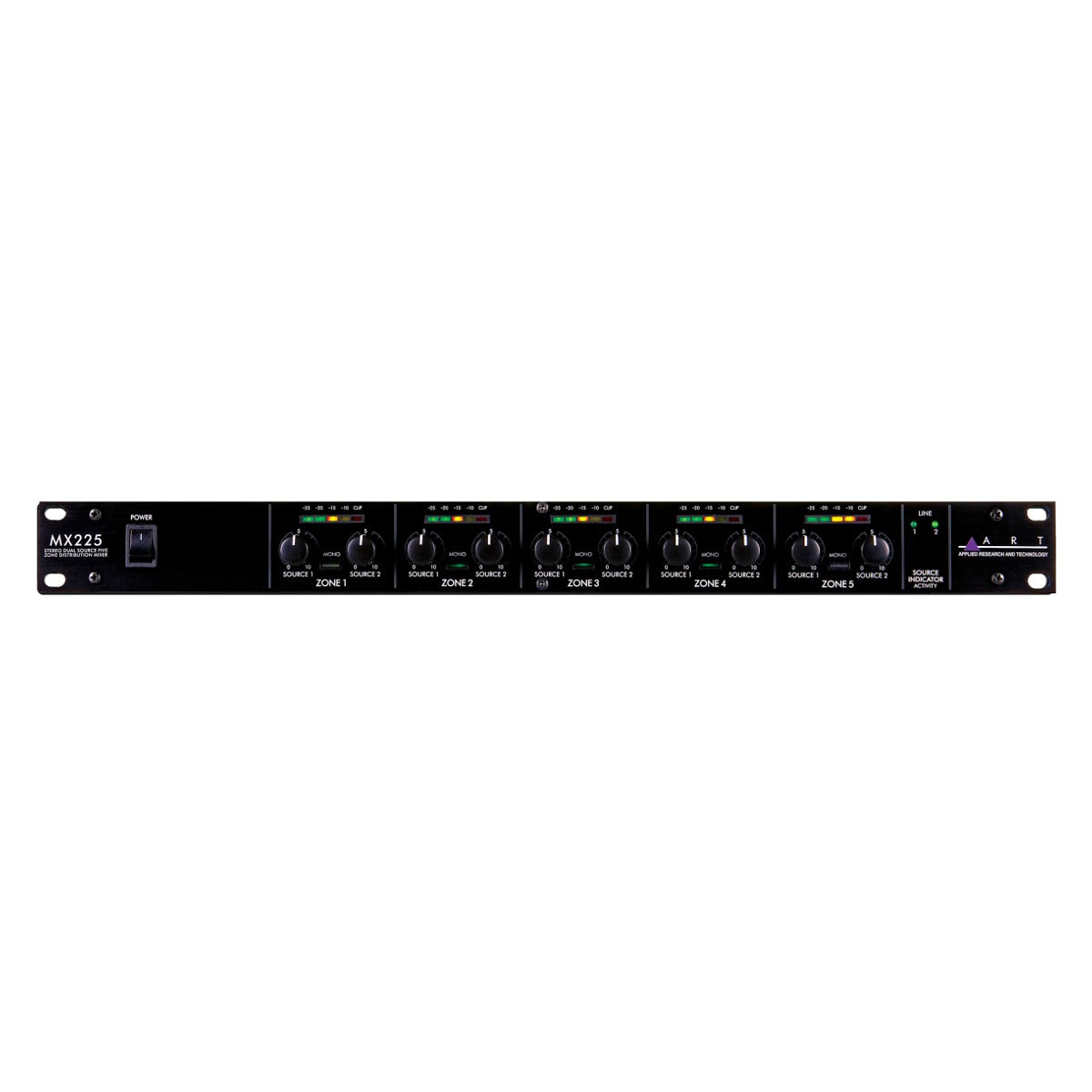

• Each zone has separate Source 1 and Source 2 level controls
• Stereo/mono switch with mono indicator LED on every zone
• LED level meter on every zone (-25, -20, -15, -10, Clip)
• Source signal indicator LEDs

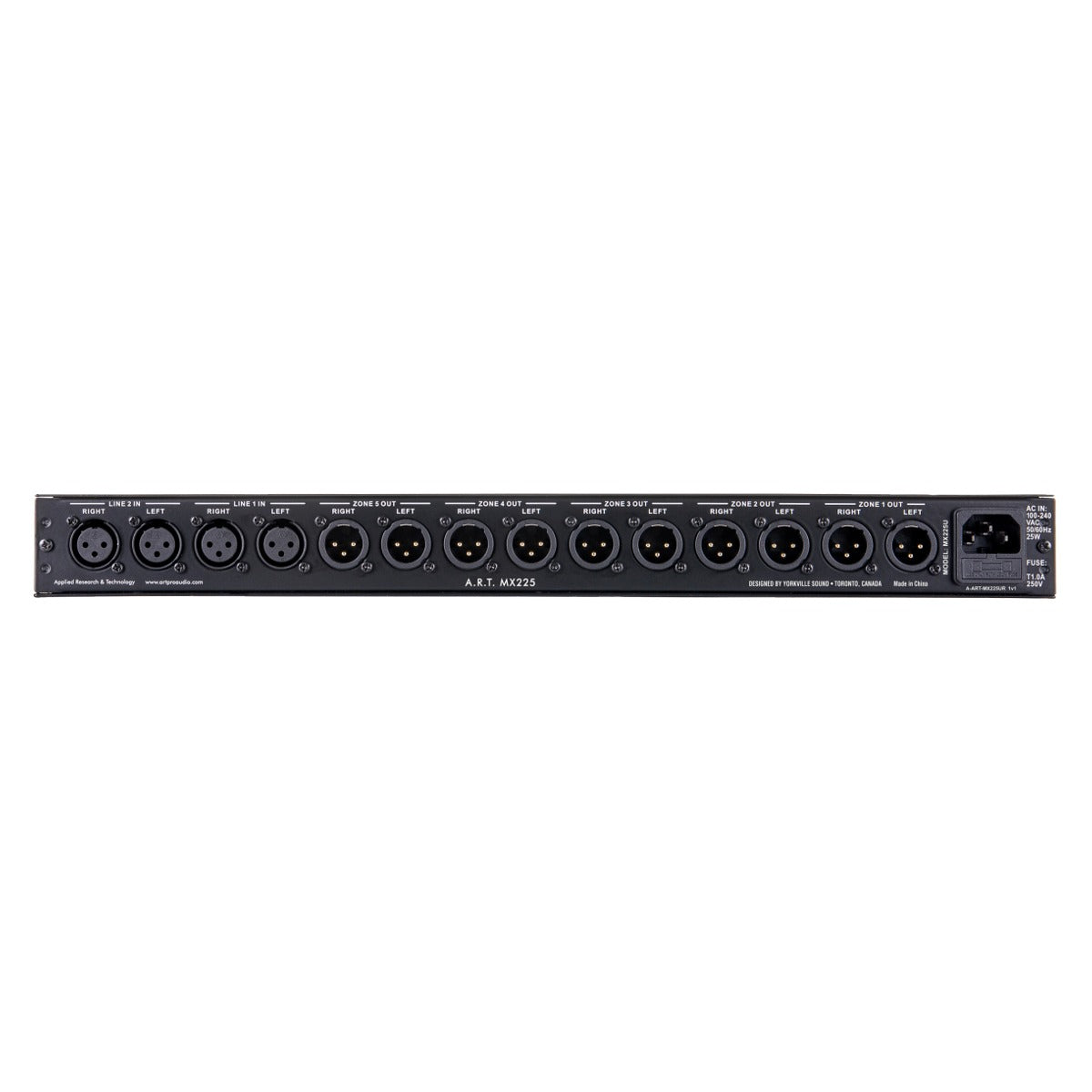

• All connections are balanced XLR: 4 x XLR-F inputs, 10 x XLR-M outputs
• Built-in power supply
• Single-space (1U) 19" rack mount

Specifications

• Input impedance: 47k ohms
• Maximum input level: +20 dBu
• Maximum output level: +24 dBu balanced
• Maximum gain: +6 dB
• Signal to noise ratio: >90 dB typical
• THD: 0.05% typical
• Dimensions (HxWxD): 44.5 x 483 x 184 mm
• Weight: 2.42 kg

Clearance stock from storage, sold as is.
