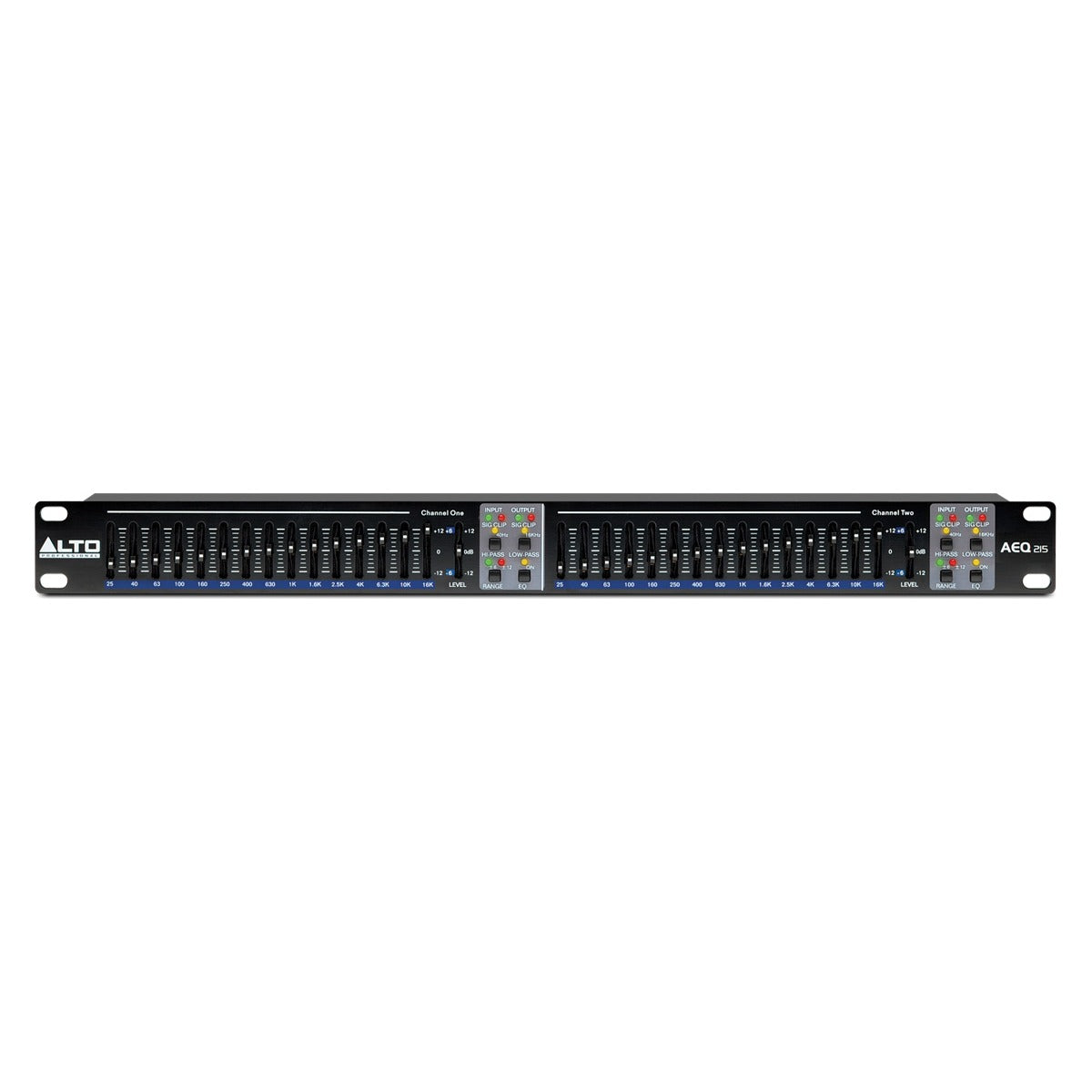

Alto AEQ215 Graphic Equalizer

A stereo 15-band graphic equaliser for precise sound shaping in the studio, on stage and everywhere in between. Two independent channels, an all-metal 1U rack chassis and a 117 dB signal-to-noise ratio give you ultra-low-noise frequency control in a rugged package.

Features

• Stereo (2-channel) 15-band graphic EQ with 2/3-octave band spacing, 25 Hz to 16 kHz
• Constant Q filtering for accurate, predictable EQ response
• Selectable boost/cut range of 6 dB or 12 dB
• Standard 20 mm centre-detented sliders
• High-pass filter: 40 Hz (12 dB/octave); low-pass filter: 16 kHz (12 dB/octave)
• Variable input level control and EQ bypass switch on each channel
• Clip level indicators
• Ground lift switch

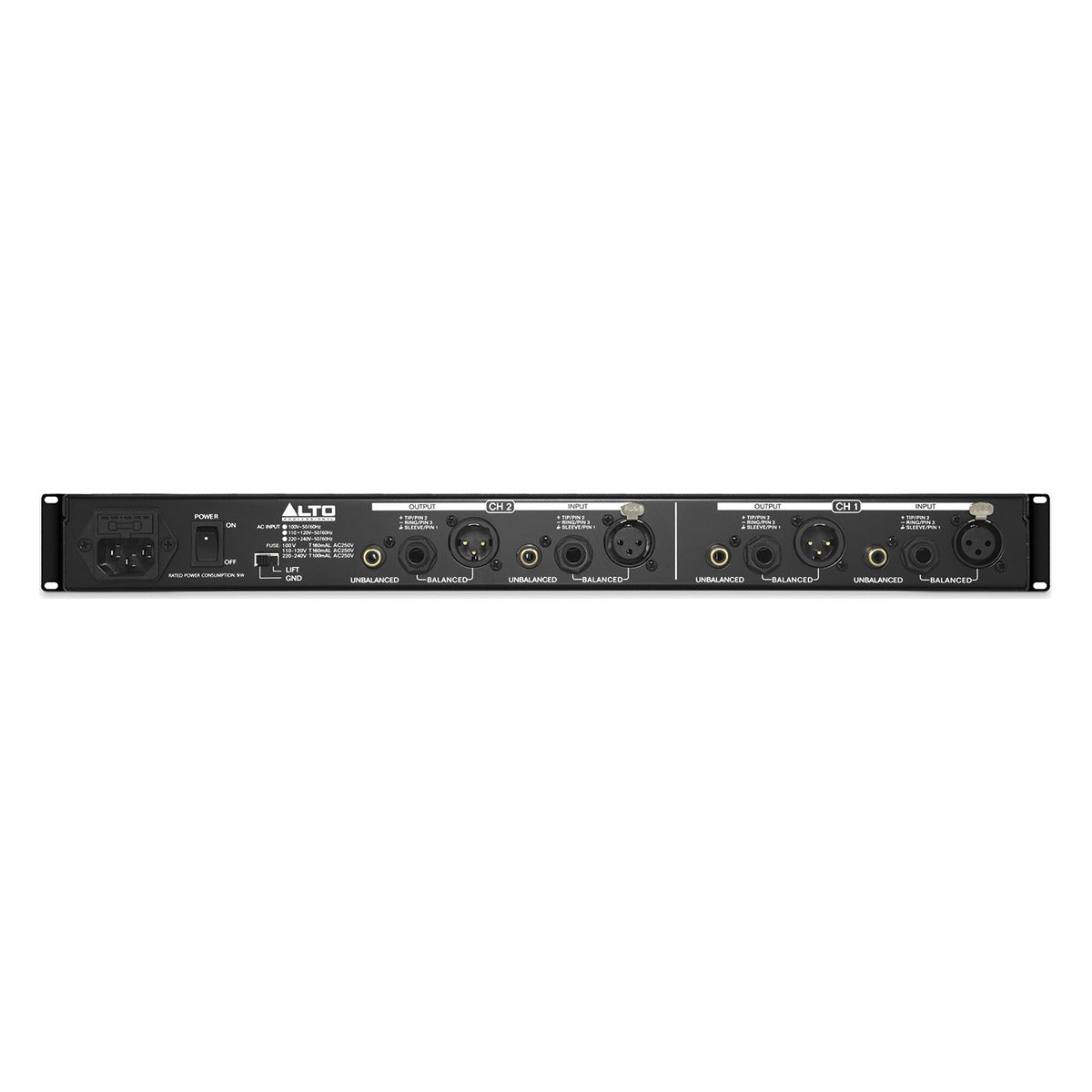

• Balanced XLR, 1/4" TRS and RCA input and output connectors

Specifications

• Frequency response: <20 Hz to >50 kHz, +0/-3 dB
• Signal-to-noise ratio: 117 dB
• THD: 0.02% (1 kHz)
• Max input level: +18 dBV; max output level: +16 dBV
• Power consumption: 15 W max
• Dimensions: 483 x 188 x 43 mm (19" 1U rack)
• Weight: 3.13 kg

Clearance stock from storage, sold as is.
