The NUX Zeus Power Brick is a high-performance, fully isolated multi-output power supply designed for professional pedalboard setups where noise control and power stability are critical.
It is built to solve common issues found in daisy-chain power systems, particularly ground-loop hum and interference when mixing analog and digital pedals. Each output is individually isolated to ensure clean, stable power delivery across the entire board.
Key capabilities include multiple voltage configurations, high current handling, and support for modern DSP pedals.
Key Features:
Fully Isolated Outputs:
10 independent outputs with individual isolation to eliminate ground-loop noise and signal interference in complex pedal setups.
Flexible Voltage Architecture:
Provides a mix of fixed and switchable outputs:

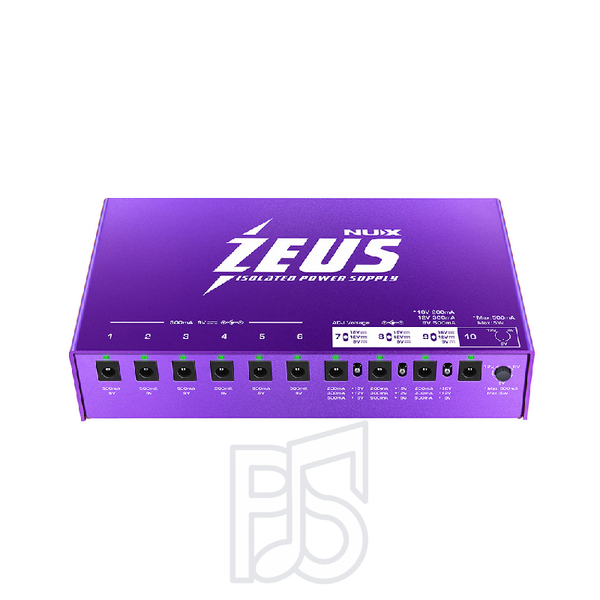

- 6 × 9V / 500mA outputs
- 3 × selectable 9V / 12V / 18V high-current outputs
- 1 × variable 6V–12V output for voltage-sensitive or “sag” response pedals
High Current Delivery:
Designed to handle power-hungry digital effects and multi-pedal rigs, including modern high-draw DSP units.
Global AC Input:
100–240V universal input supports worldwide use without voltage conversion.
USB Power Output:
Integrated USB port for charging external devices such as phones or accessories during performance or setup.
Low Noise Switching Design:
Engineered for minimal ripple and interference, improving signal clarity in high-gain and studio environments.
Complete Power Kit:
Includes multiple DC cables, polarity adapters, and current doubler accessories for flexible pedalboard integration.
Summary
The Zeus Power Brick is intended for users running larger or mixed pedalboards who need reliable isolation, flexible voltage options, and low-noise performance under load. It sits in the professional tier of pedal power management rather than entry-level solutions.
