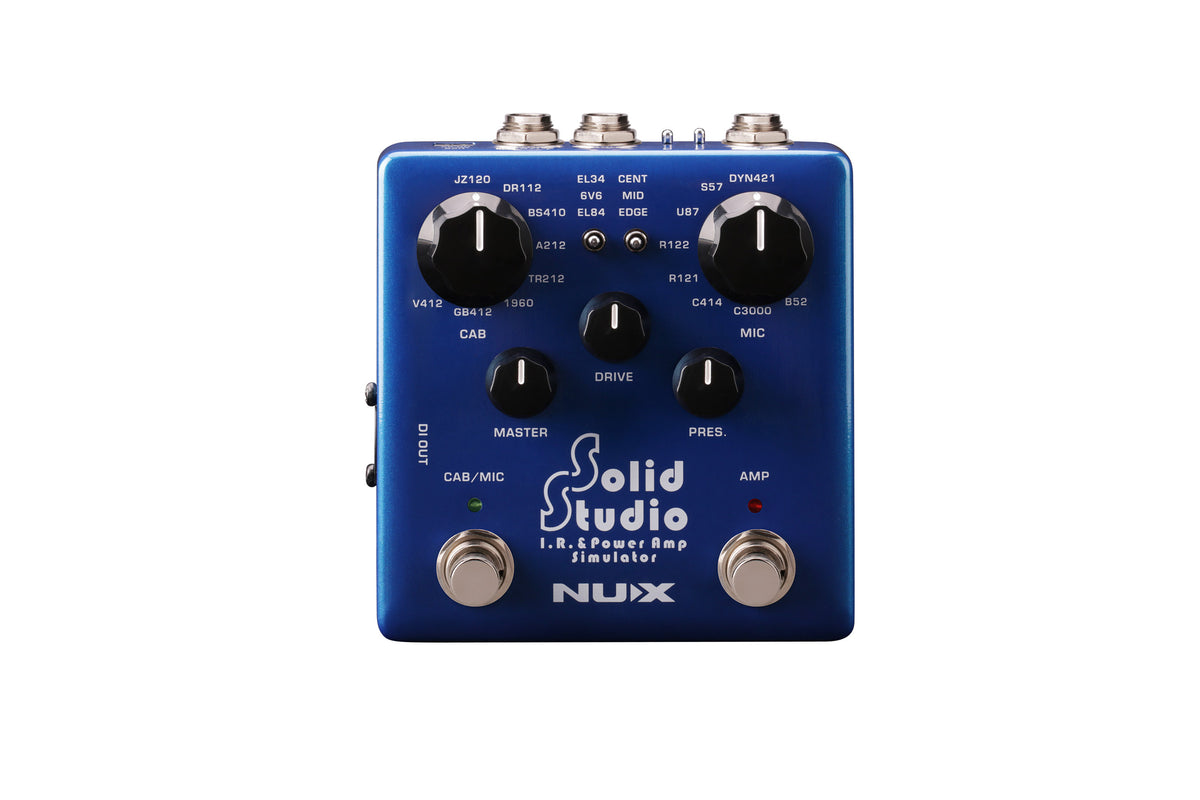

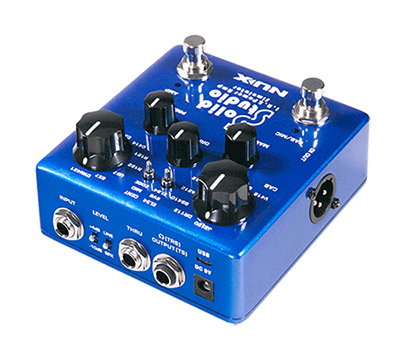

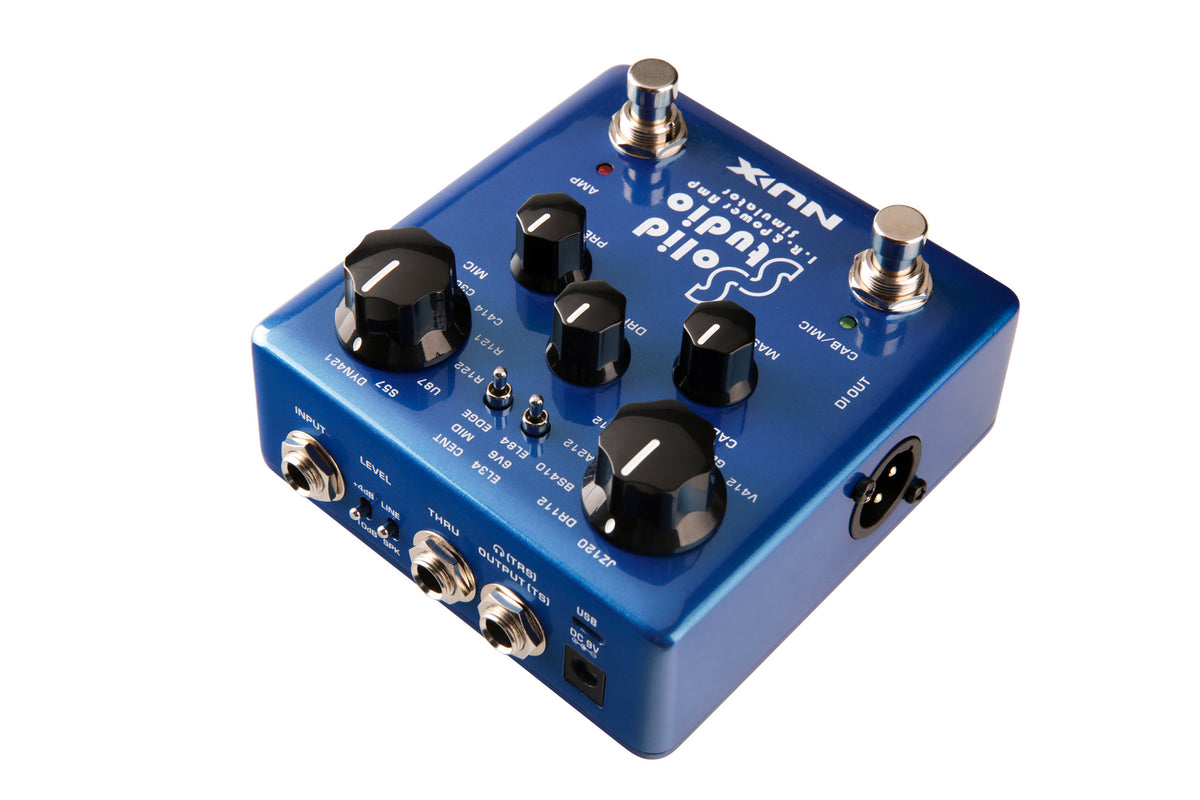

NUX Solid Studio NSS-5 – IR Loader, Speaker & Power Amp Simulator

NUX Solid Studio NSS-5 is a speaker cabinet, microphone and power-amp simulator designed for direct guitar rigs, silent recording and live setups. It can sit at the end of a pedalboard to send a cabinet-simulated signal to a mixer or interface while also providing a THRU output for an amplifier.

Key Features

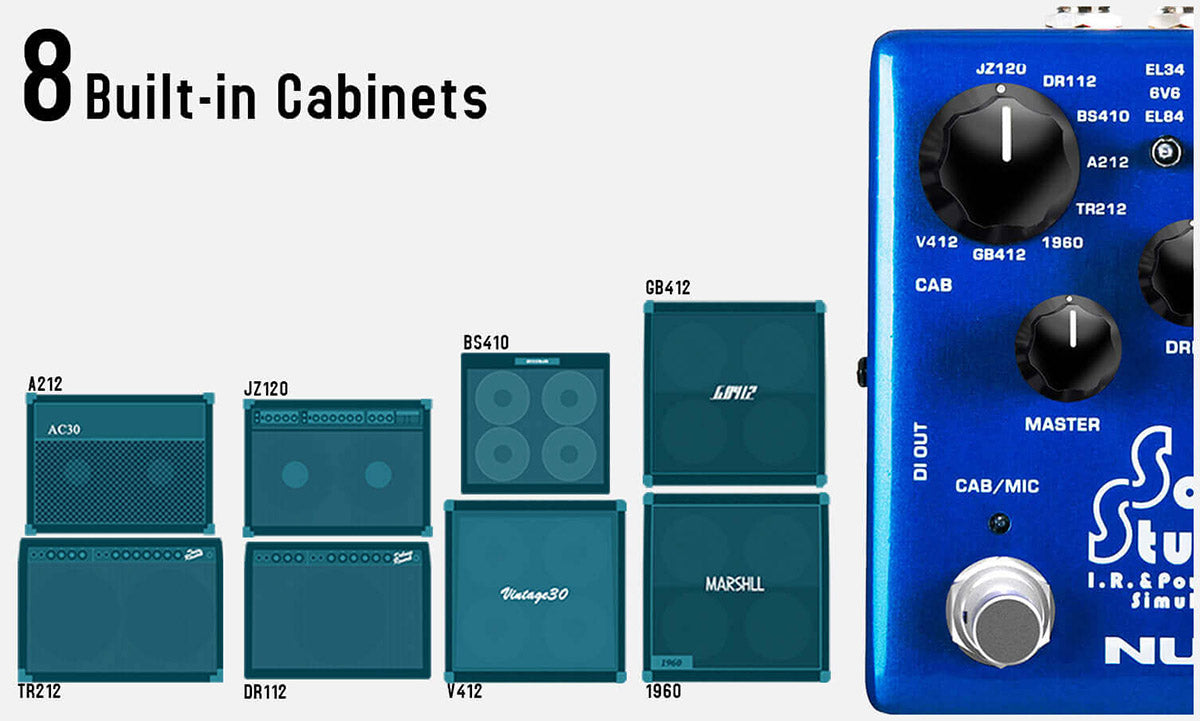

• 8 built-in speaker cabinet simulations

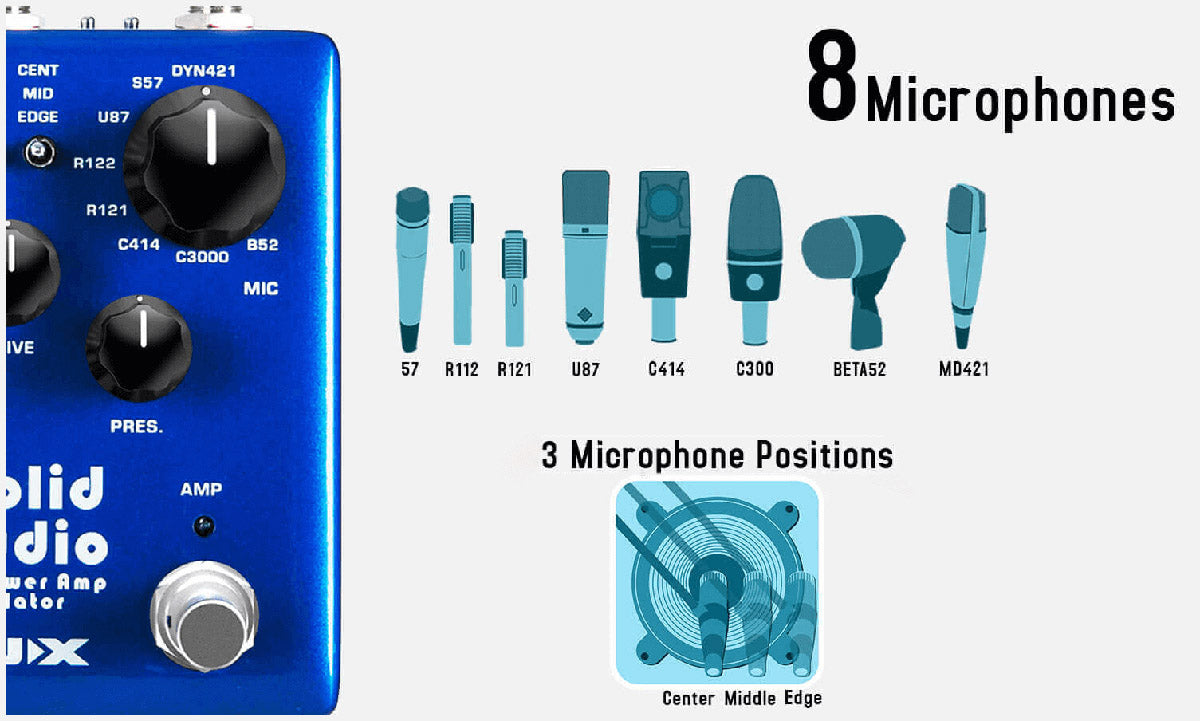

• 8 microphone models with 3 microphone positions

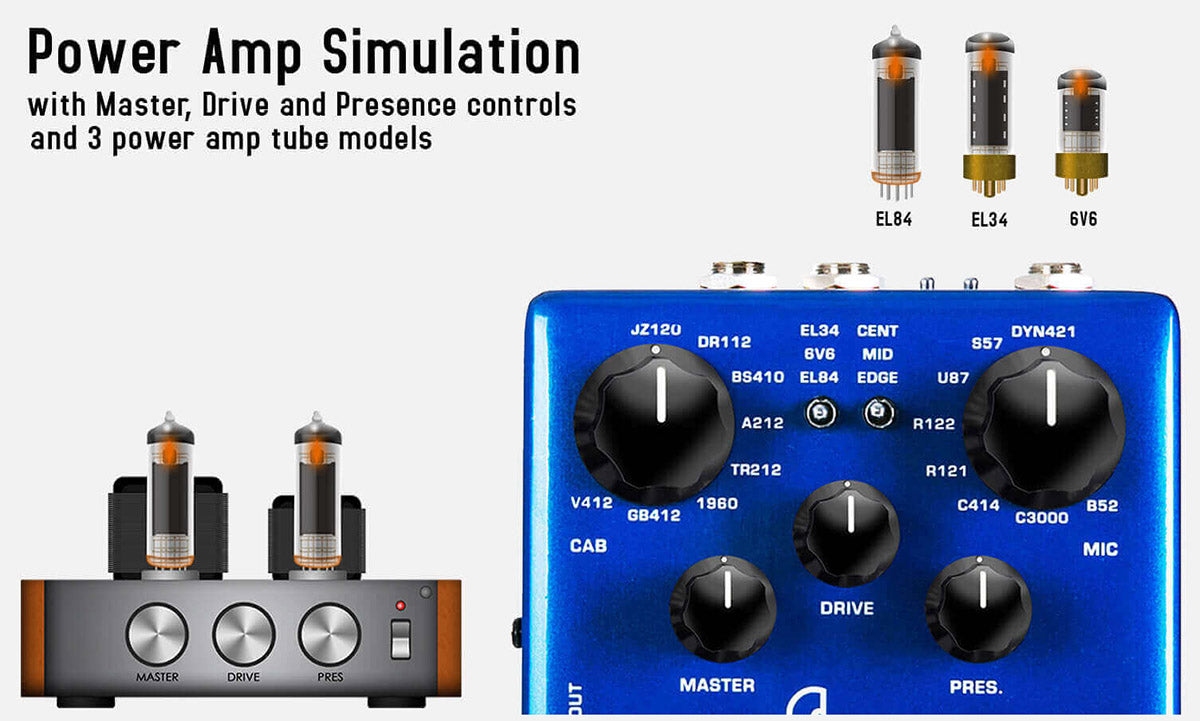

• 3 power-amp tube models
• Master, Drive and Presence controls for the power-amp section
• 2048-sample IR resolution
• Supports loading external impulse-response files
• IR capture function for creating speaker profiles

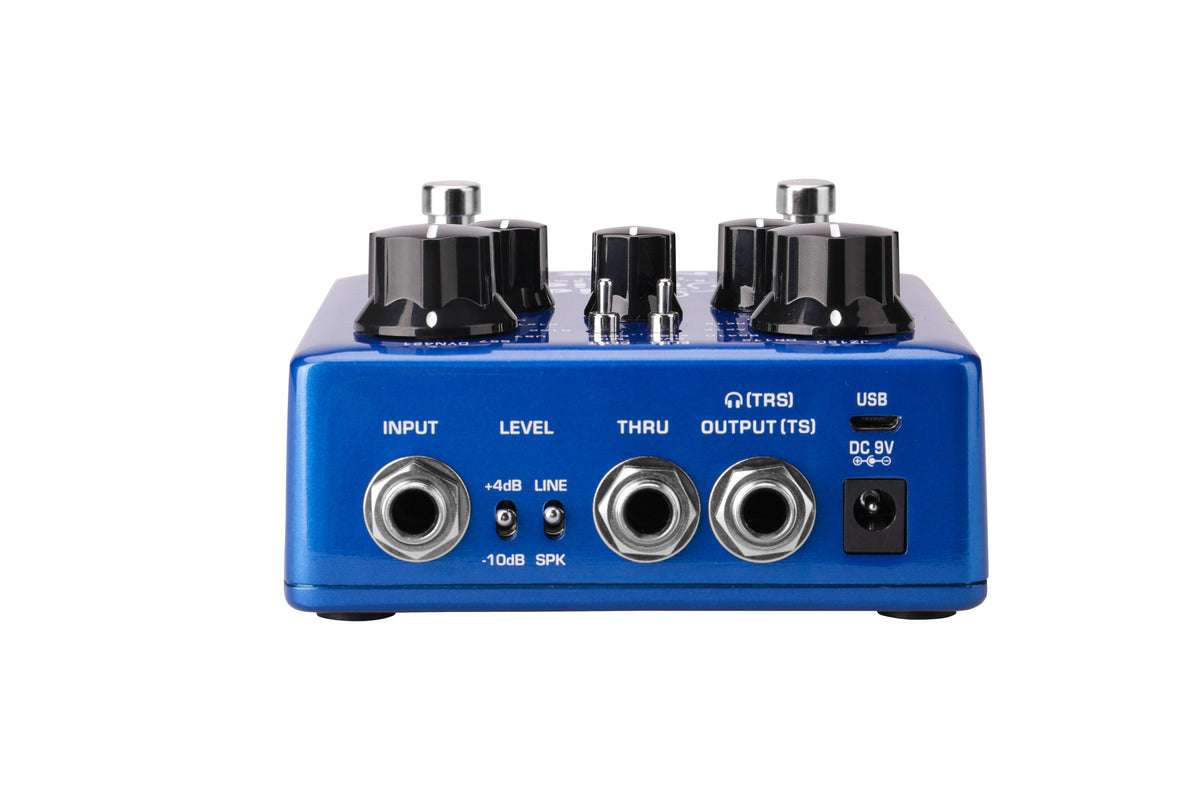

• Dedicated stereo simulation output and DI output
• THRU output with Line/Speaker modes
• Input level switch: -10dB / +4dB

Typical Uses

• Direct to PA: send cabinet and microphone simulation to a mixer or PA.
• Silent recording: connect between your pedalboard and audio interface without a microphone and cabinet.
• Live rig: send the simulated signal to the PA while using the THRU output for an amplifier.
• Advanced amp setup: place the unit between an amplifier and cabinet for a DI feed with speaker simulation.

Specifications

• Speaker cabinets: 8
• Microphones: 8
• Microphone positions: 3
• Power-amp tubes: 3
• IR resolution: 2048 samples / 46ms
• Outputs: stereo simulation, DI OUT and THRU
