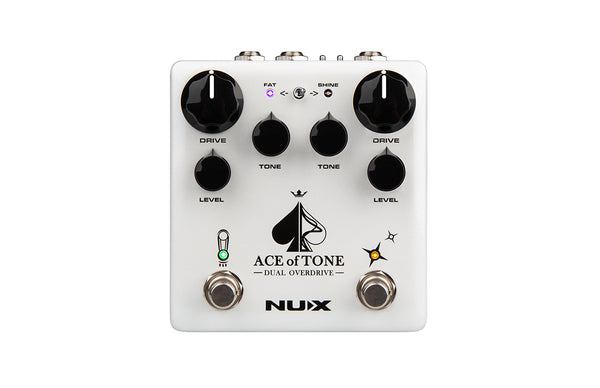

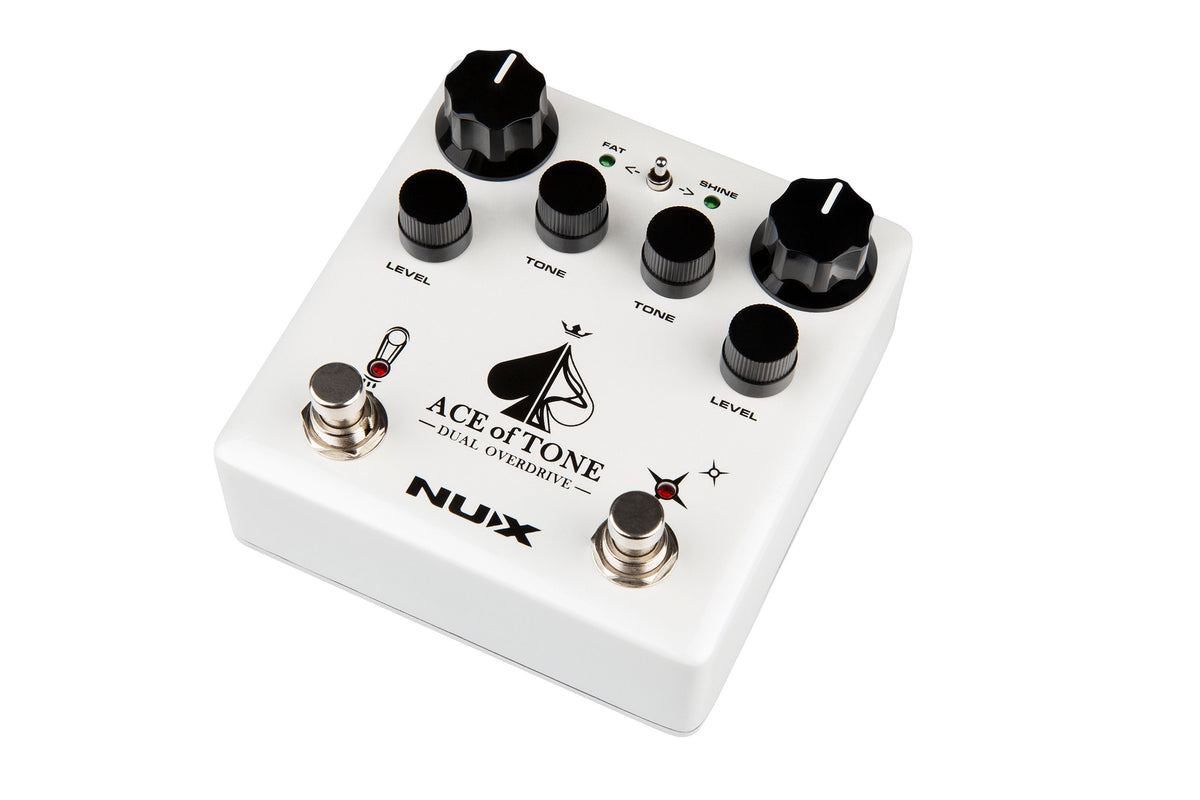

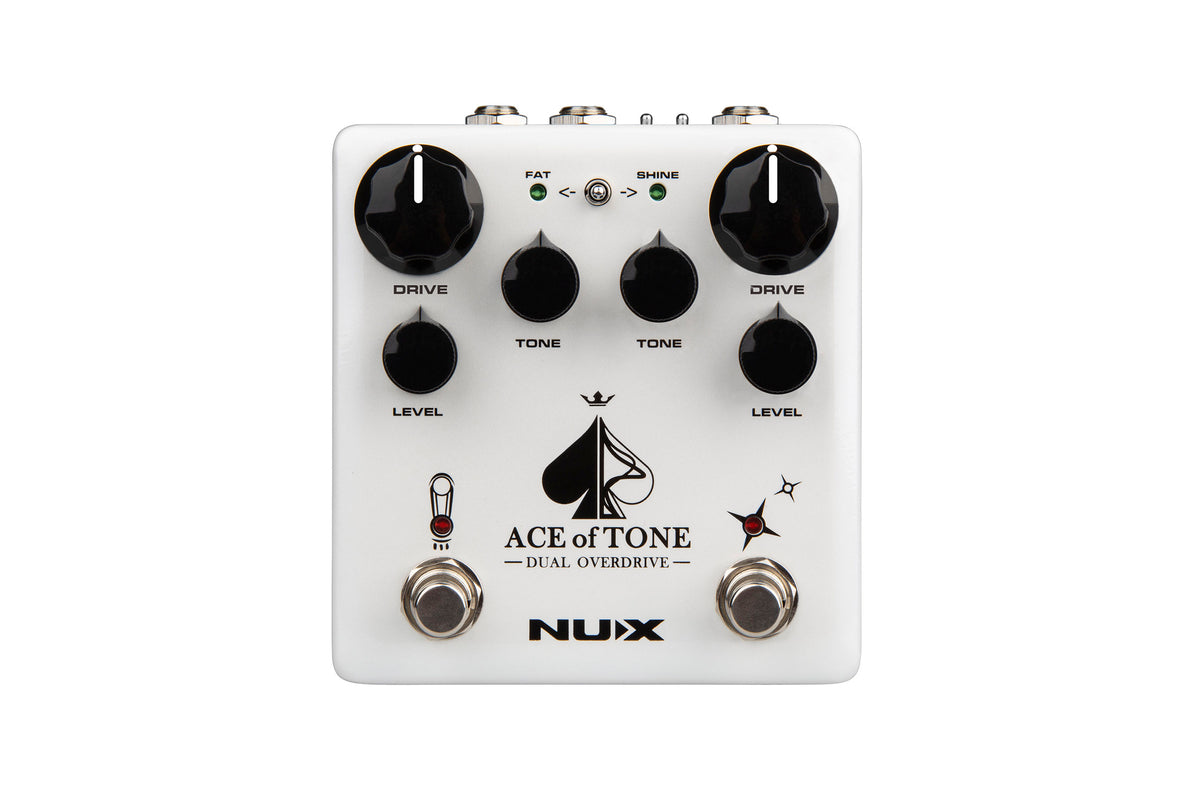

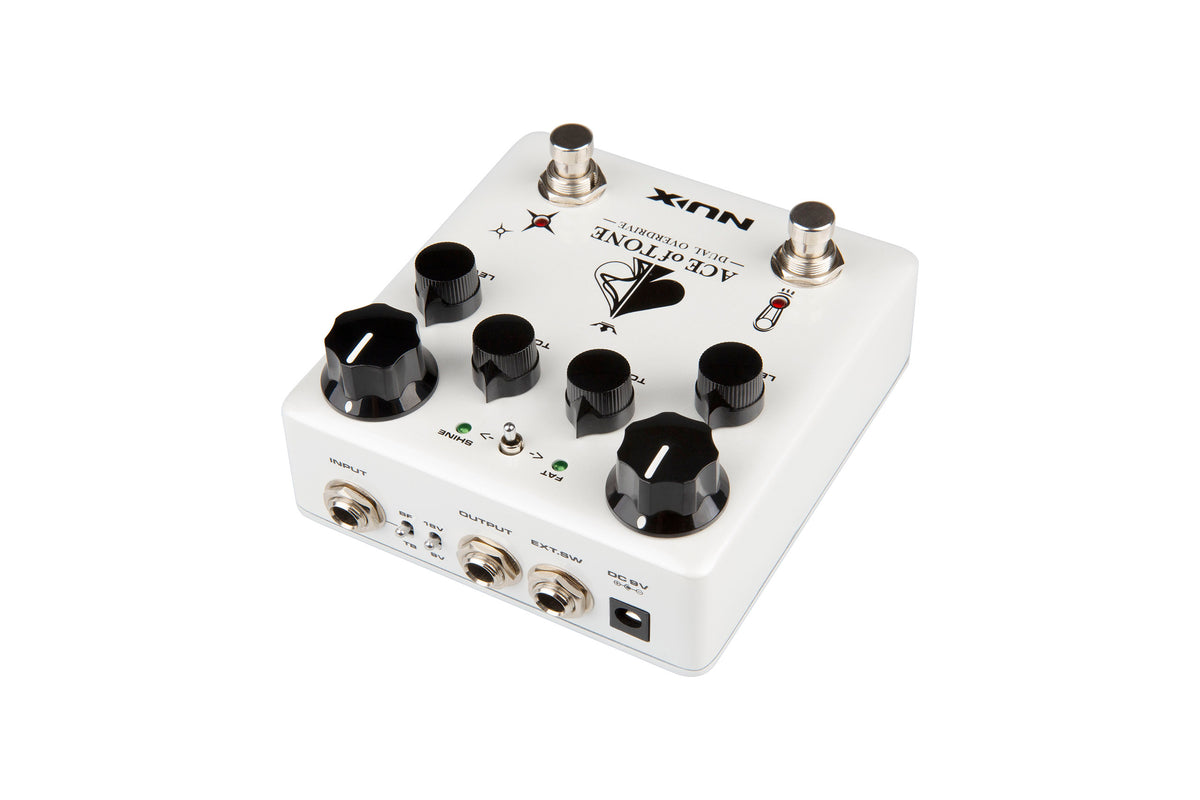

NUX Ace of Tone NDO-5 Dual Overdrive Guitar Pedal

The NUX Ace of Tone NDO-5 combines two distinct overdrive circuits in one pedal, giving guitarists flexible options for low-gain drive, higher-gain tones and stacked overdrive sounds.

Key Features

• Dual overdrive based on NUX Tubeman MKII and Morning Star circuits
• Left channel: Tubeman-style overdrive with switchable FAT mode for increased low-end and a warmer response
• Right channel: Morning Star-style transparent low-gain overdrive with switchable SHINE mode for added treble clarity
• Selectable signal routing: Morning Star into Tubeman or Tubeman into Morning Star

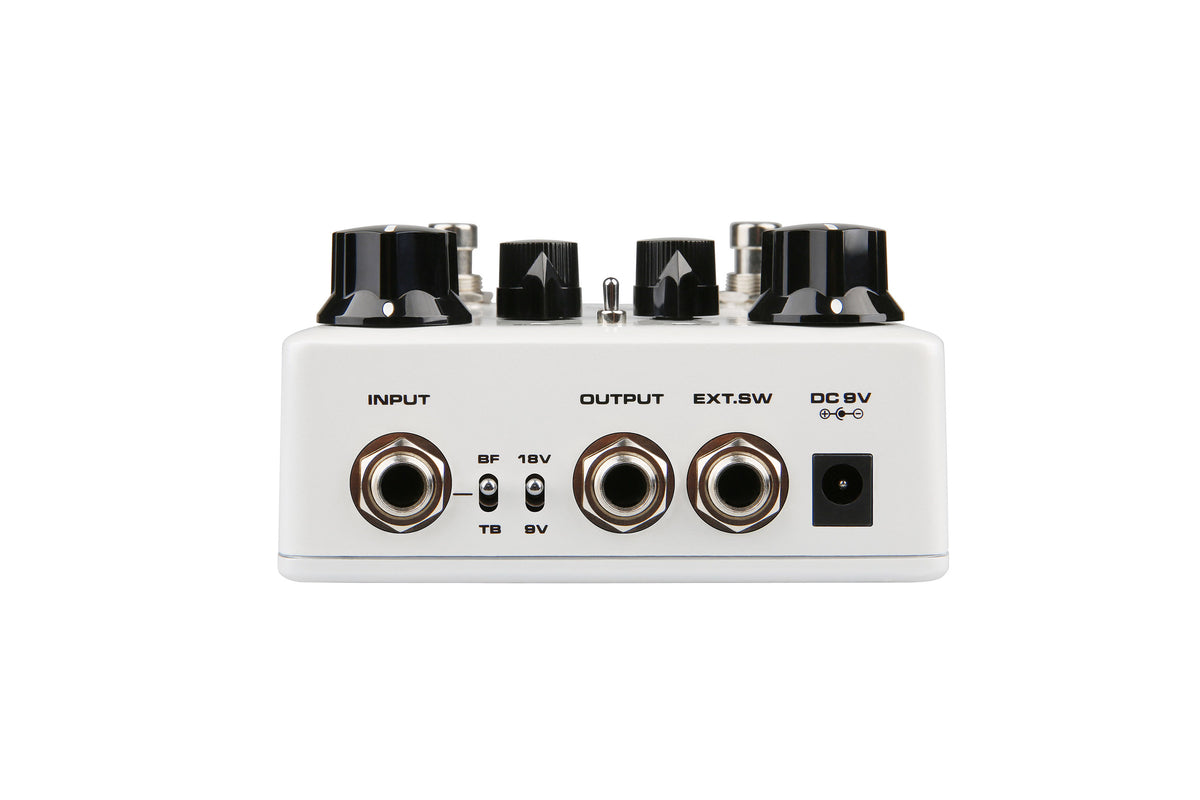

• Buffer bypass or true bypass selectable from the pedal
• Internal voltage doubling switchable between 9V and 18V for increased headroom and dynamic range
• External foot-controller input for compatible NUX controllers such as the NMP-2

Controls

• Tubeman side: Drive, Tone, Level and FAT mode
• Morning Star side: Drive, Tone, Level and SHINE mode
• Routing switch for changing the order of the two overdrive circuits

Specifications

• Input impedance: 2.2MΩ
• Output impedance: 1kΩ
• Power: 9V DC, negative tip
• Current draw: less than 100mA
• Dimensions: 105 × 115 × 58mm
• Weight: 440g

Note: The pedal can internally double the supply voltage when switched to 18V mode, but it should still be powered from a compatible 9V DC negative-tip supply.
