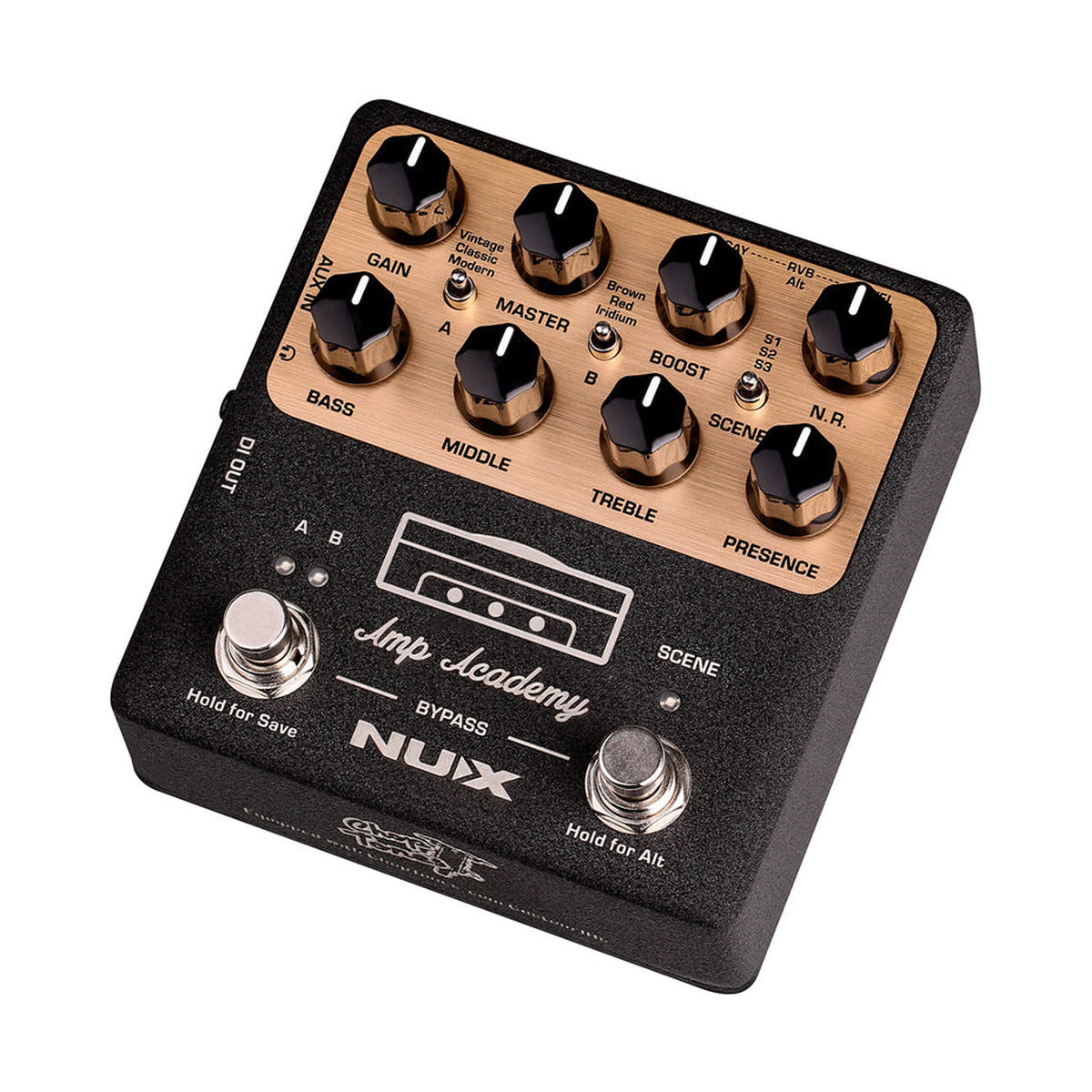

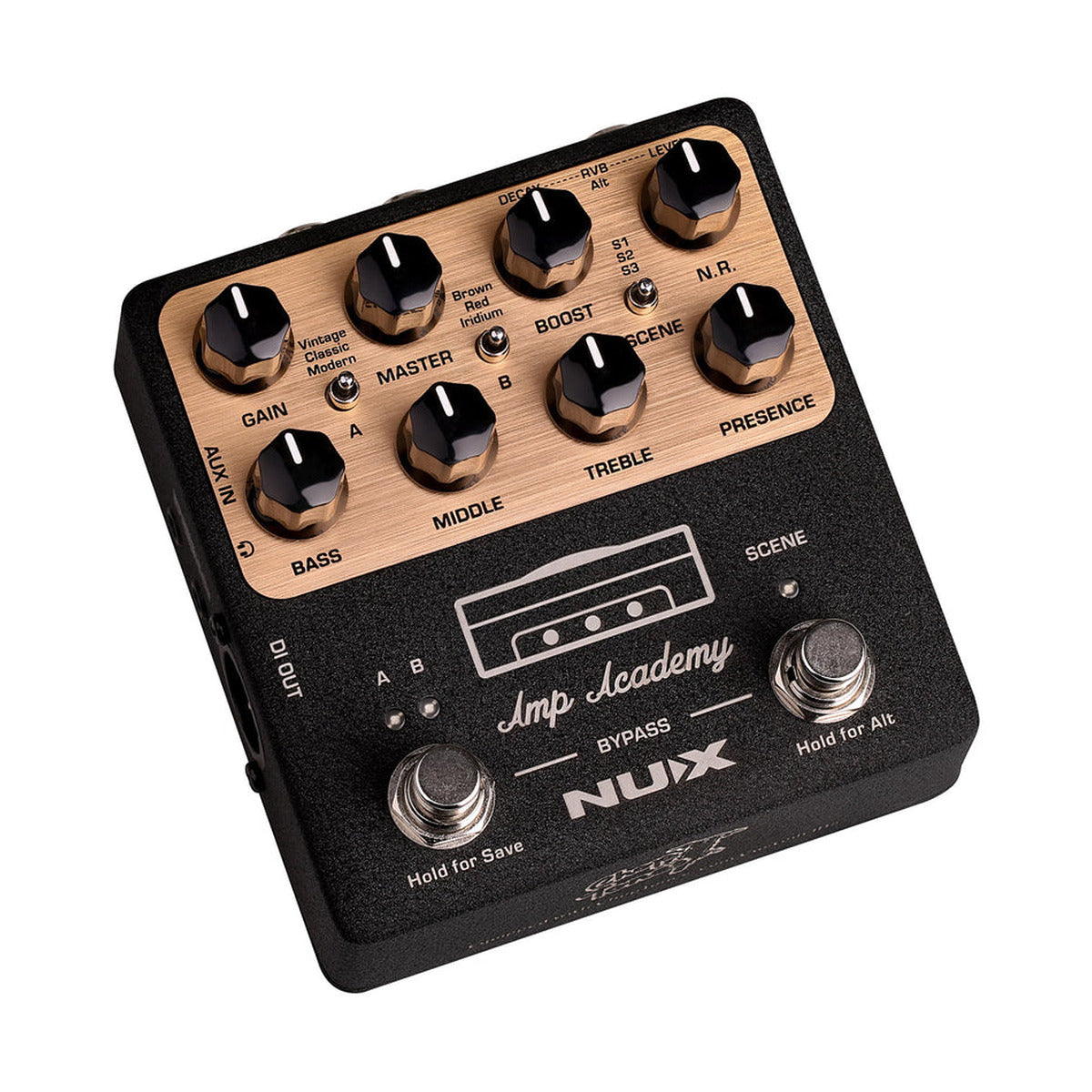

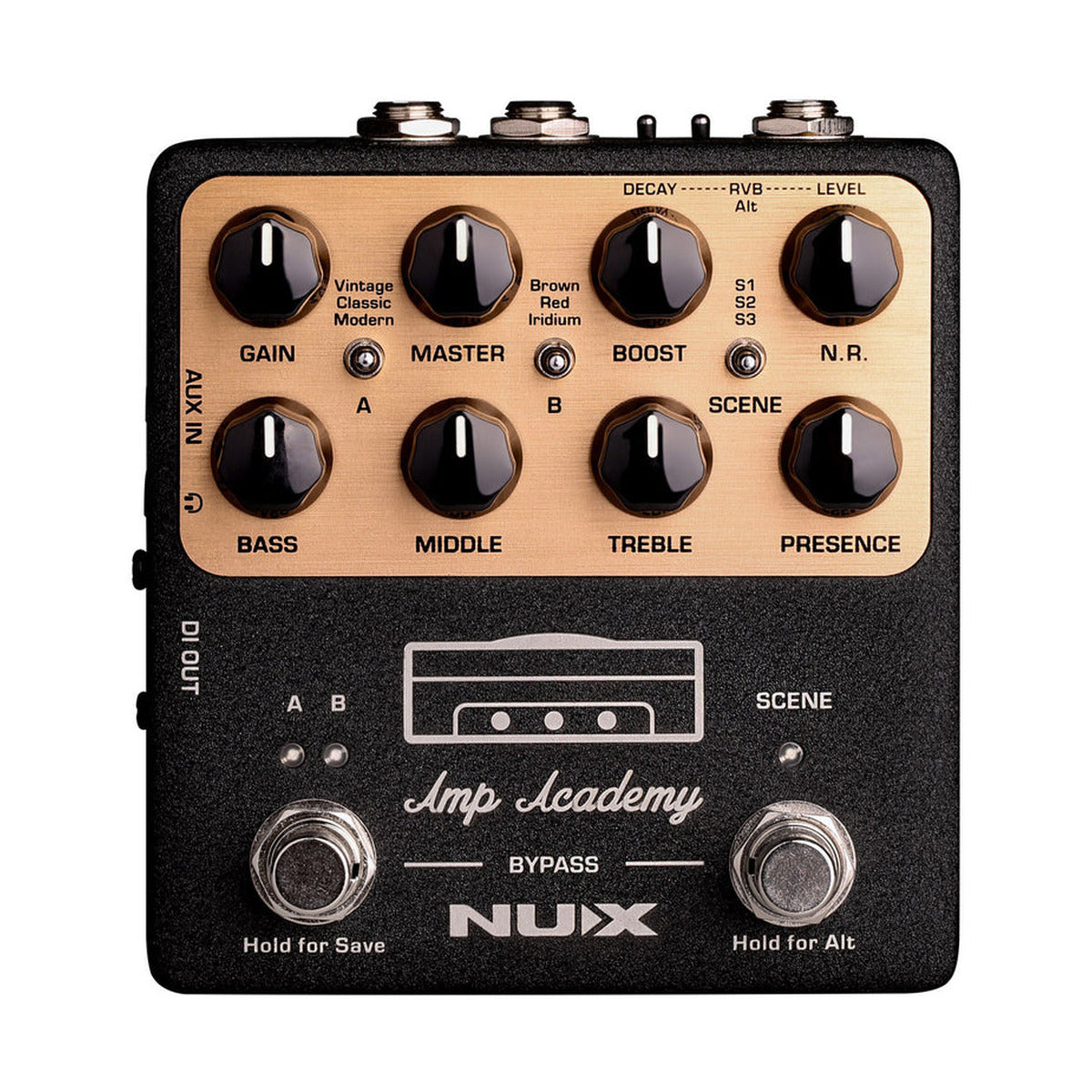

NUX Amp Academy NGS-6 Amp Modeler & IR Loader Pedal

The NUX Amp Academy NGS-6 is a compact amp modelling and IR loader pedal designed for direct guitar rigs, recording, silent practice and live performance. It uses NUX TSAC-2K white-box amp modelling to deliver responsive amp-style tones in a pedalboard-friendly format.

Key Features

• TSAC-2K white-box amp modelling with bias tweaking
• 6 core amp models, with up to 18 amp choices available through the latest V4 firmware
• 1024-sample IR resolution with third-party IR loading
• 6 IR slots plus 12 ChopTones custom IRs and 16 user IR slots
• 7 independent movable signal blocks with Send/Return effect loop
• 3 Scenes for quick switching between stored sounds

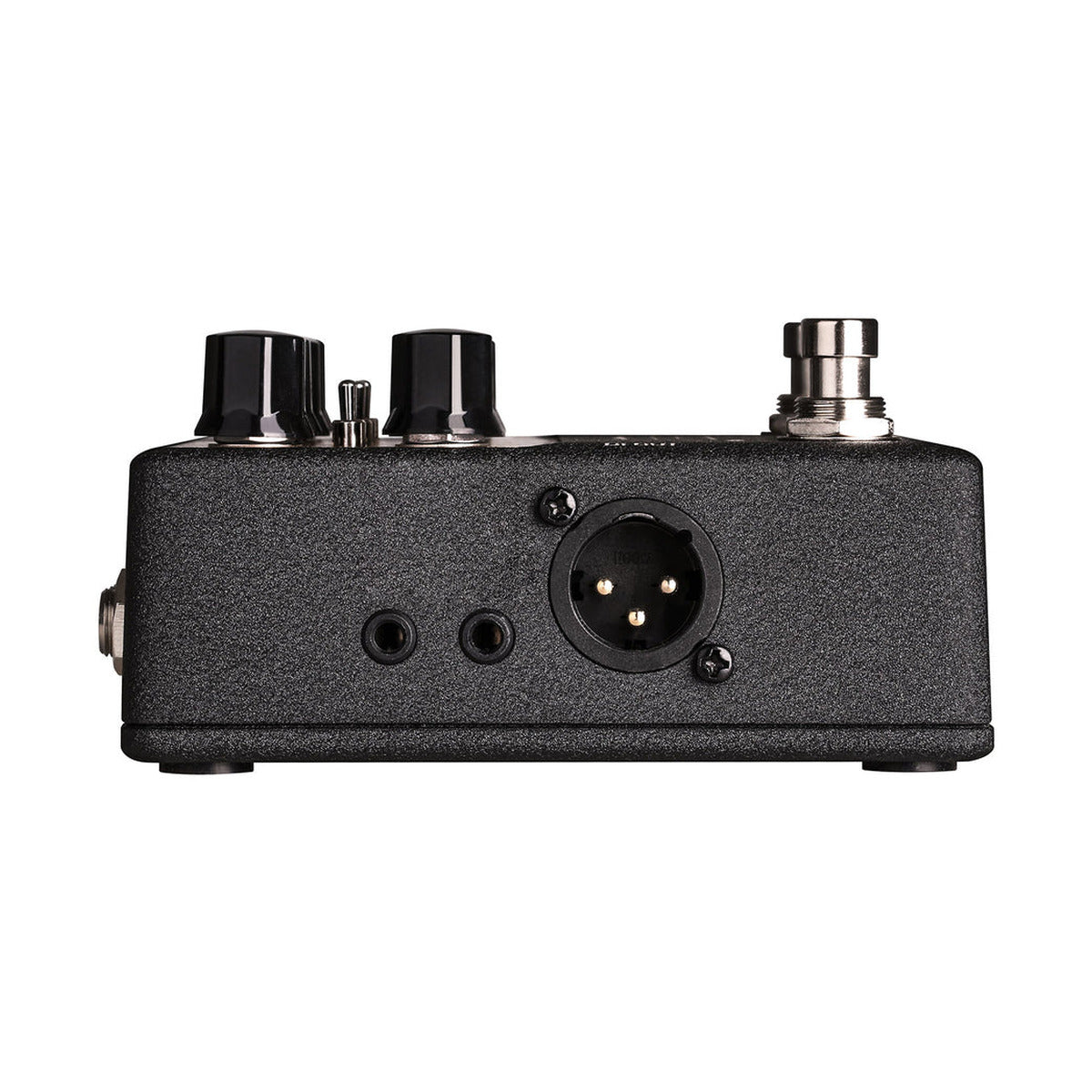

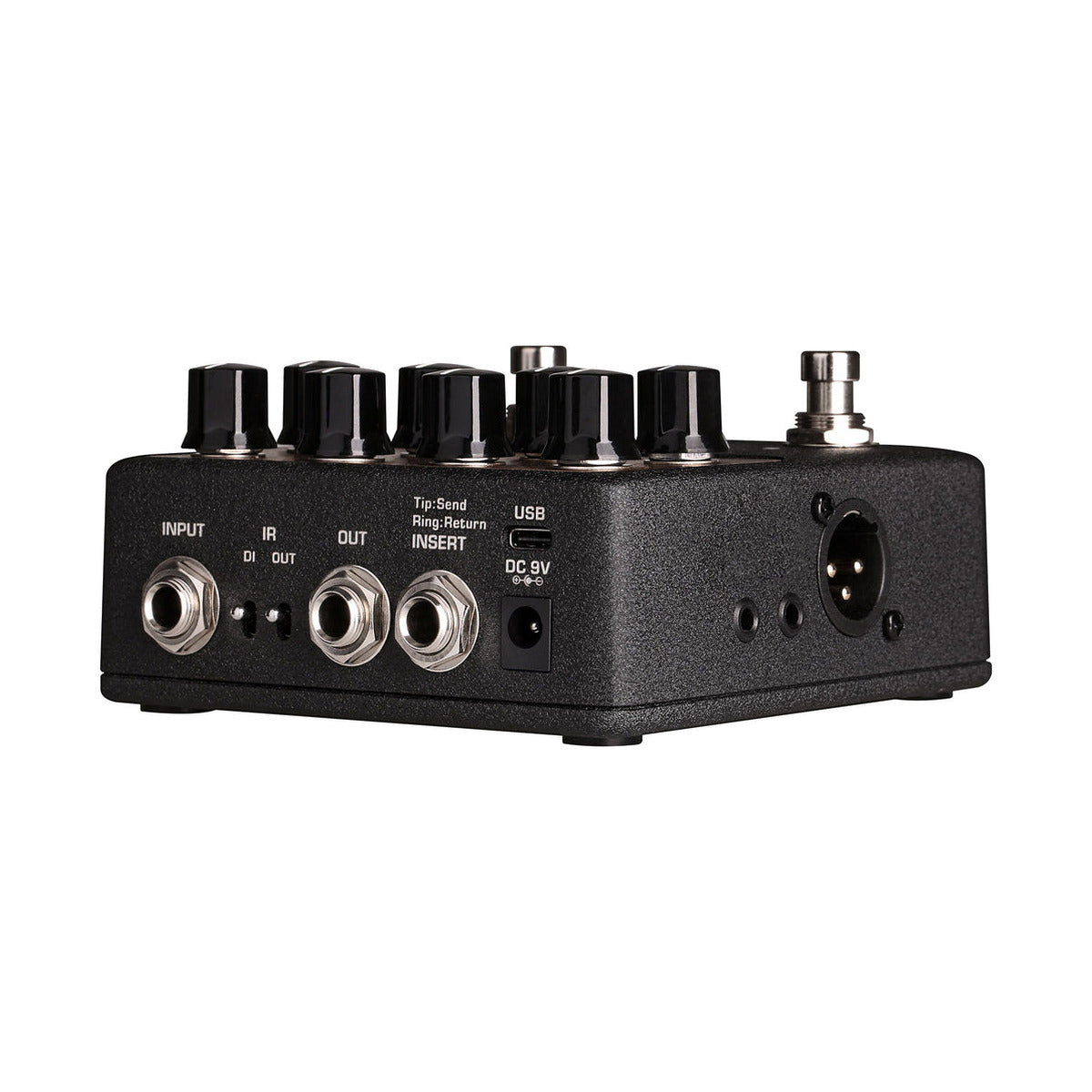

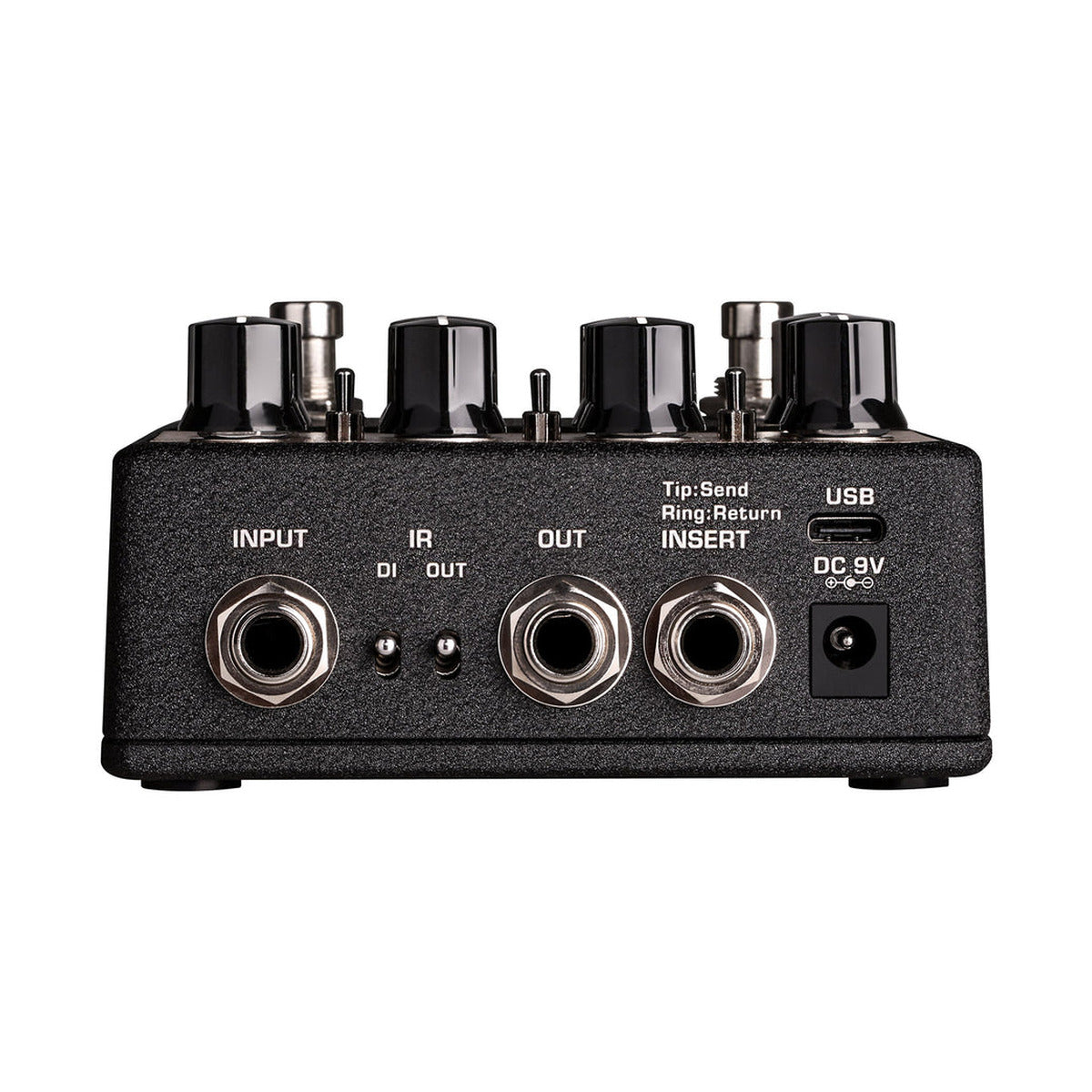

• Independent 1/4-inch and XLR IR outputs for flexible live and recording setups
• 1.2ms system latency and 110dB dynamic range
• USB audio interface for recording, re-amping and computer playback
• EFX Mobile app and Amp Academy editor for editing and live tweaking
• MIDI control via USB
• Includes an insert Y-cable for the effects loop

Amp & IR Modelling

The core amp models cover clean, classic, modern, high-gain and British-style tones. The IR section provides 1024-sample resolution and supports third-party impulse responses, allowing you to build a direct rig around your preferred cabinet sounds.

Live, Studio & Silent Practice

Use the NGS-6 directly into a mixer or PA, connect it to a recording interface for studio work, or use the headphone output for silent practice. The IR output can be configured independently for different direct and amplifier setups.

Specifications

• Sampling rate: 48kHz / 32-bit
• System latency: 1.2ms
• Dynamic range: 110dB
• Input impedance: 1MΩ
• Output impedance: 1kΩ
• Power: 9V DC negative tip; optional NUX ACD-006A adapter
• Current draw: less than 300mA
• Dimensions: 105 × 115 × 58mm
• Weight: 440g
